Brake Calipers
For Porsche 914

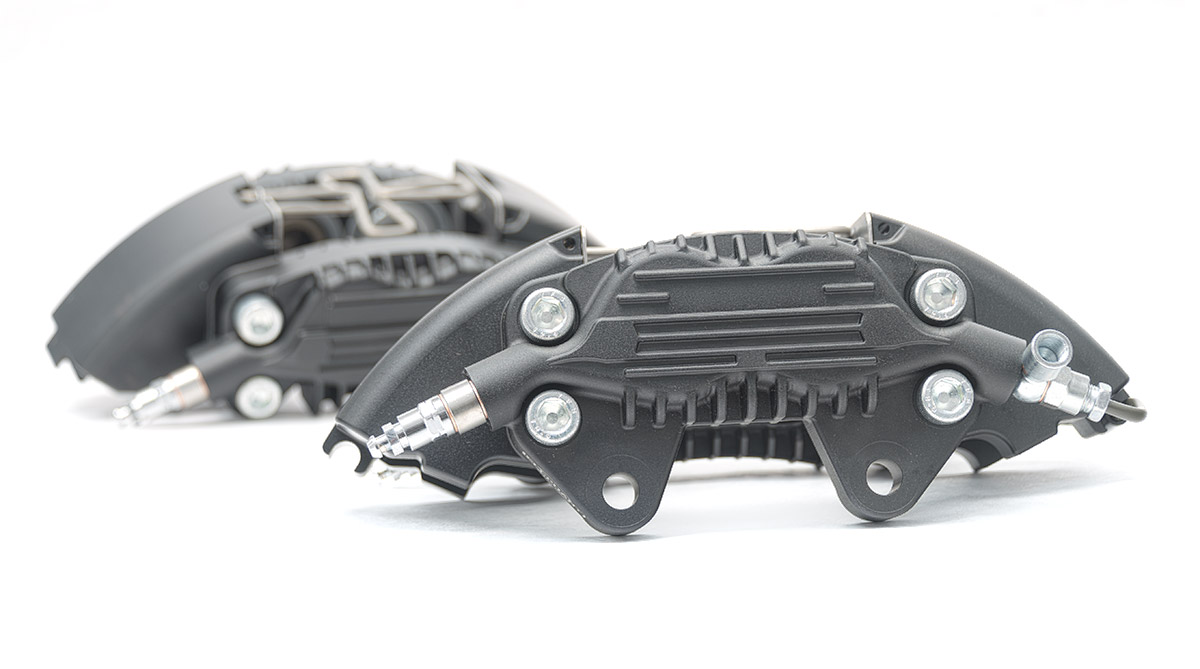

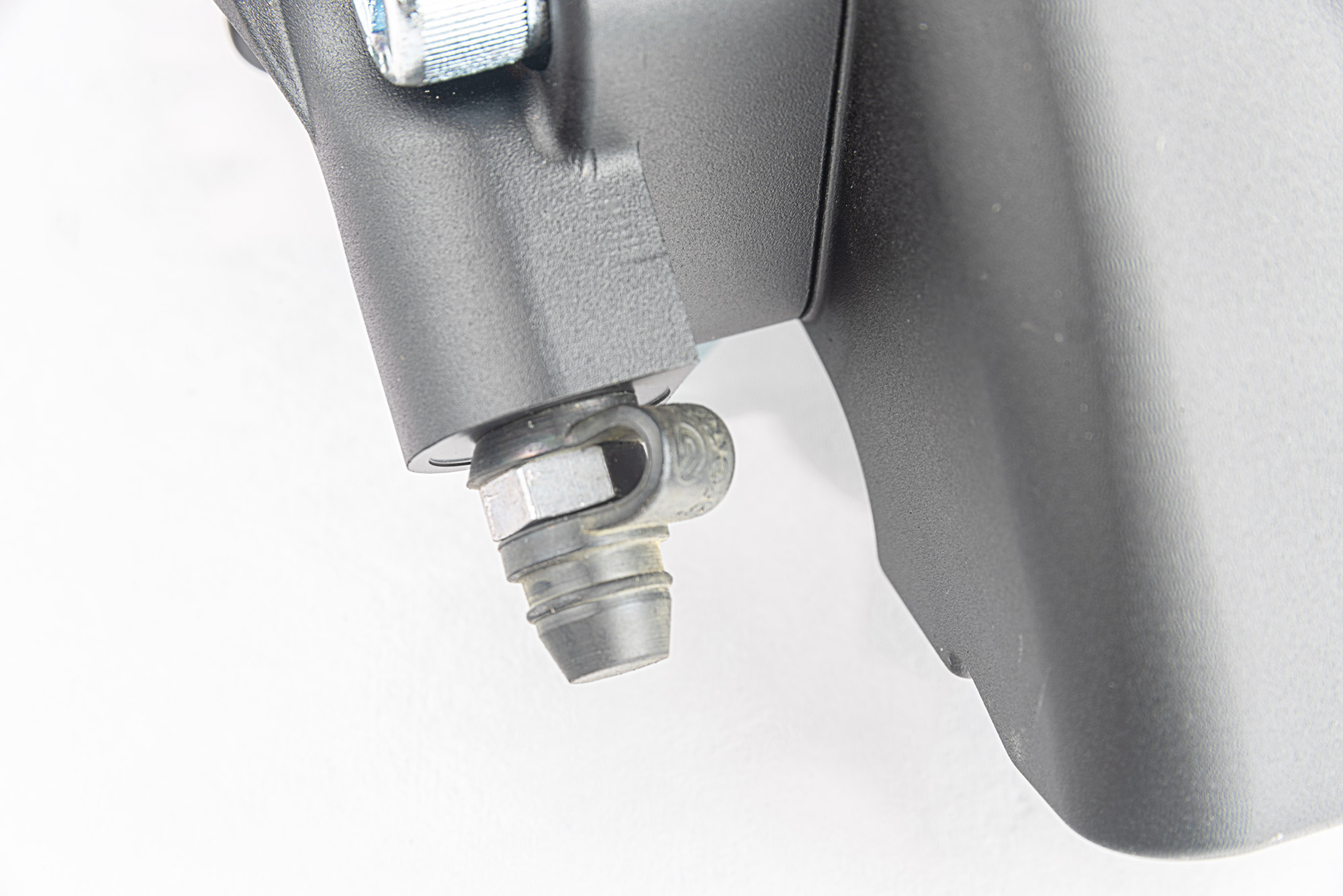

We’ve re-engineered a 930 style caliper with specific enhancements for direct fitment to the 911 series and 914. Our 930-ERX calipers are an updated version of the venerable 930 brakes which have long been the benchmark for performance.
Complete brake upgrade packages including these calipers are available here…
The 930 Brake Upgrade
930 brakes have been an awesome upgrade for 911 & 914 cars in terms of thermal capacity and pedal feel. The four piston calipers and massive 32mm front / 28mm rear rotors give incredible stopping power.
In addition to excellent stopping power, they have a period correct retro race look, retain the parking brake functionality for 911, and even fit under many 15 inch wheels. This is why 930 brakes have traditionally been the sought-after upgrade for 911/914 racecars, and high end/high powered street car builds.
However fitting them has traditionally been difficult – requiring custom machining (due to differences in 930/911 caliper bolt spacing), wheel clearance issues, and limited availability.
Our re-engineered 930-ERX type calipers keep everything that’s great while fixing all the issues. And they accept readily-available 930 type pads, rotors, and master cylinders.
930-ERX Enhancements over Original 930 Calipers
✓ Direct bolt on 911/914 fitment with no caliper machining required.
✓ Rear calipers available with choice of 3.0 inch bolt spacing for ’69-’89 911/912/914 trailing arms, and 3.5 inch spacing for 930 trailing arms.
✓ Front calipers available with choice of 3.0 inch bolt spacing to mount directly onto most ’65-’75 911/912/914 struts, and 3.5 inch spacing for ’76-‘89 911/930 struts.
✓ Front and rear caliper cooling fins are low profile such that they do not interfere with Fuchs wheel spokes and do not require wheel spacers.

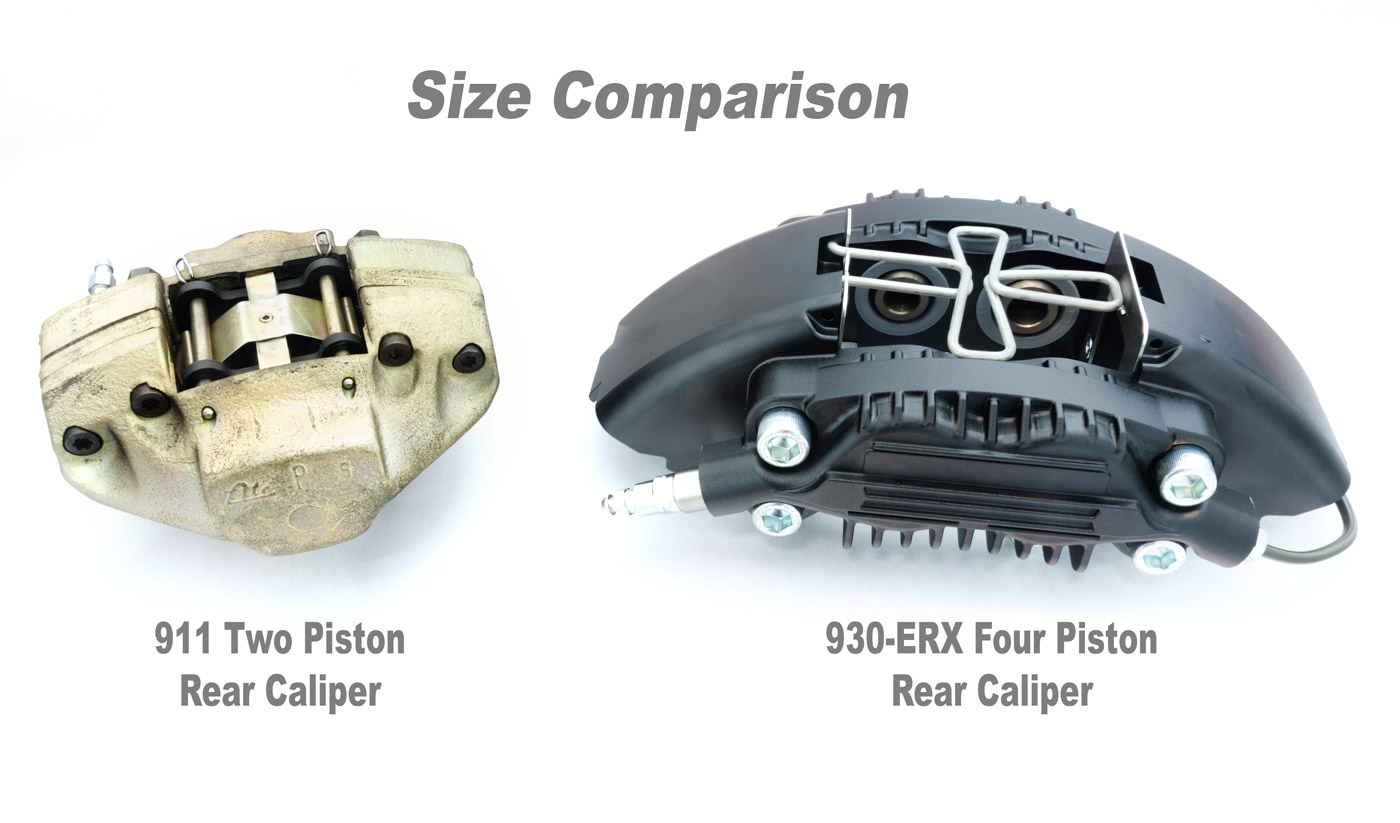

✓ A modern staggered piston design is used for even pad wear on our 930-ERX calipers. Original 930 calipers used same size pistons, which caused pads to wear in a taper.
930-ERX Fitment and Compatibility
STRUTS
930 ERX front calipers are available with choice of fitment for 3.0 or 3.5 inch caliper bolt center spacing enabling fitment on all 911, 912, 914, and 930 models. Be sure to order the calipers with correct bolt hole spacing to match your struts.
The following table is a guideline for fitment but we advise measuring the bolt spacing on your struts to be sure, many cars have non-original struts retrofit.
Front Struts with 3.0 inch caliper bolt center spacing:
• ’65-’75 911, 911T, 912
• ’74-’75 911S prior to Chassis # 911 520 2046
• ’69-’76 914
Front Struts with 3.5 inch caliper bolt center spacing:
• ’69-’73 911S, 911E
• ’75 911S From Chassis # 911 520 2046: Chassis # 911 521 1218
• ’76-‘89 911 all models, 912E
• ’76-’89 930
TRAILING ARMS
930 ERX rear calipers are available with 3.0 bolt spacing for direct fitment to 911, 912, & 914 trailing arms from ’69-’89 including aluminum and steel trailing arms. Aluminum 911 trailing arms require removal of the heat shield mounting ears for fitment of the calipers.
Rear calipers are also available with 3.5 inch bolt spacing for direct fitment to 930 trailing arms.
930 ERX rear calipers do not support 2.25 inch bolt spacing found on ’65-’68 911 and 912. However we have options for these cars, call to discuss.
PADS
Front and rear calipers accept standard 930 brake pads and standard 911 or 914 brake hoses.
HUBS & ROTORS

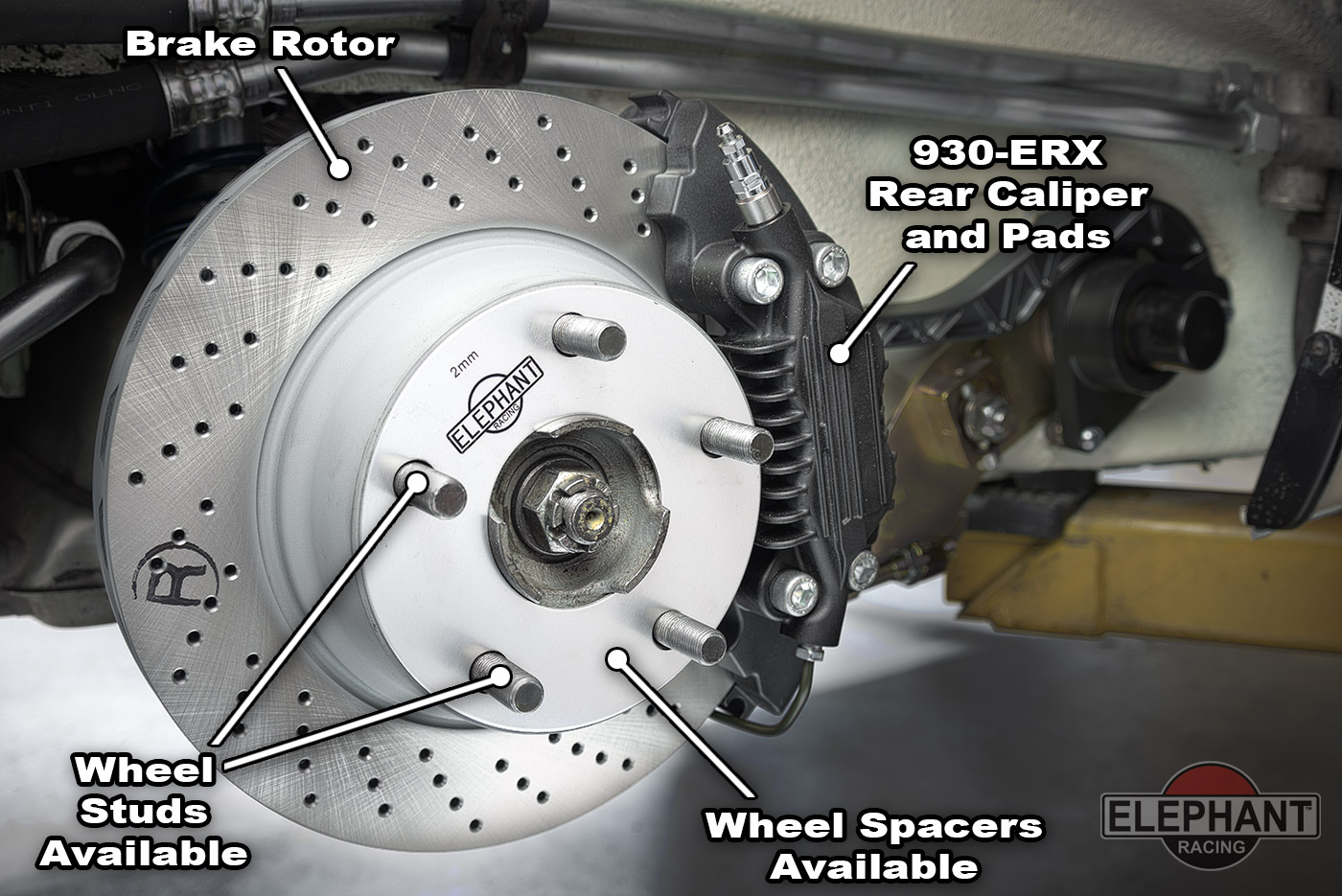

Rear calipers are compatible with standard 911/914-6 5 lug hubs and 930 rotors part 930-352-046-01, 309x28mm. 914-4 require 5 lug conversion to fit.

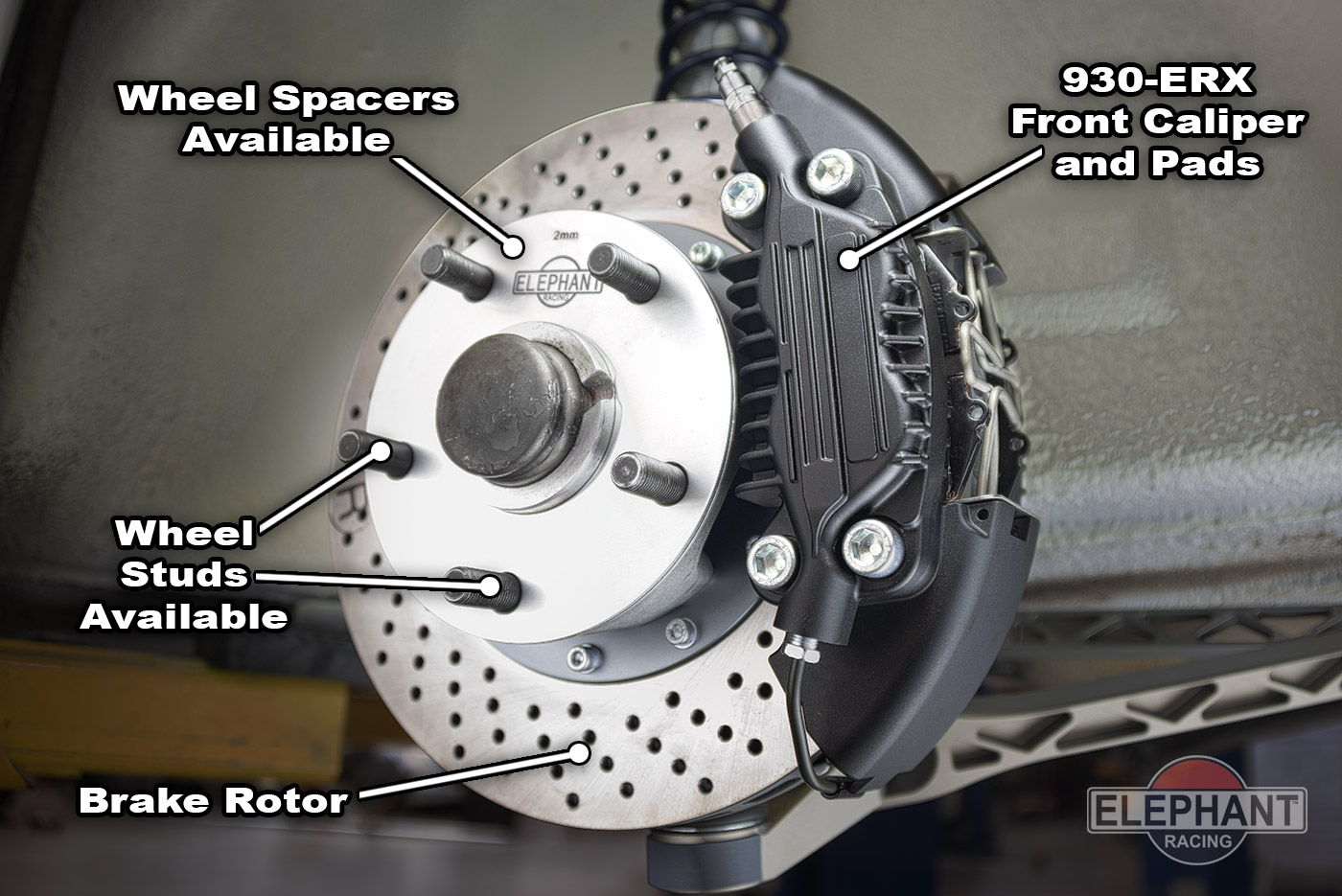

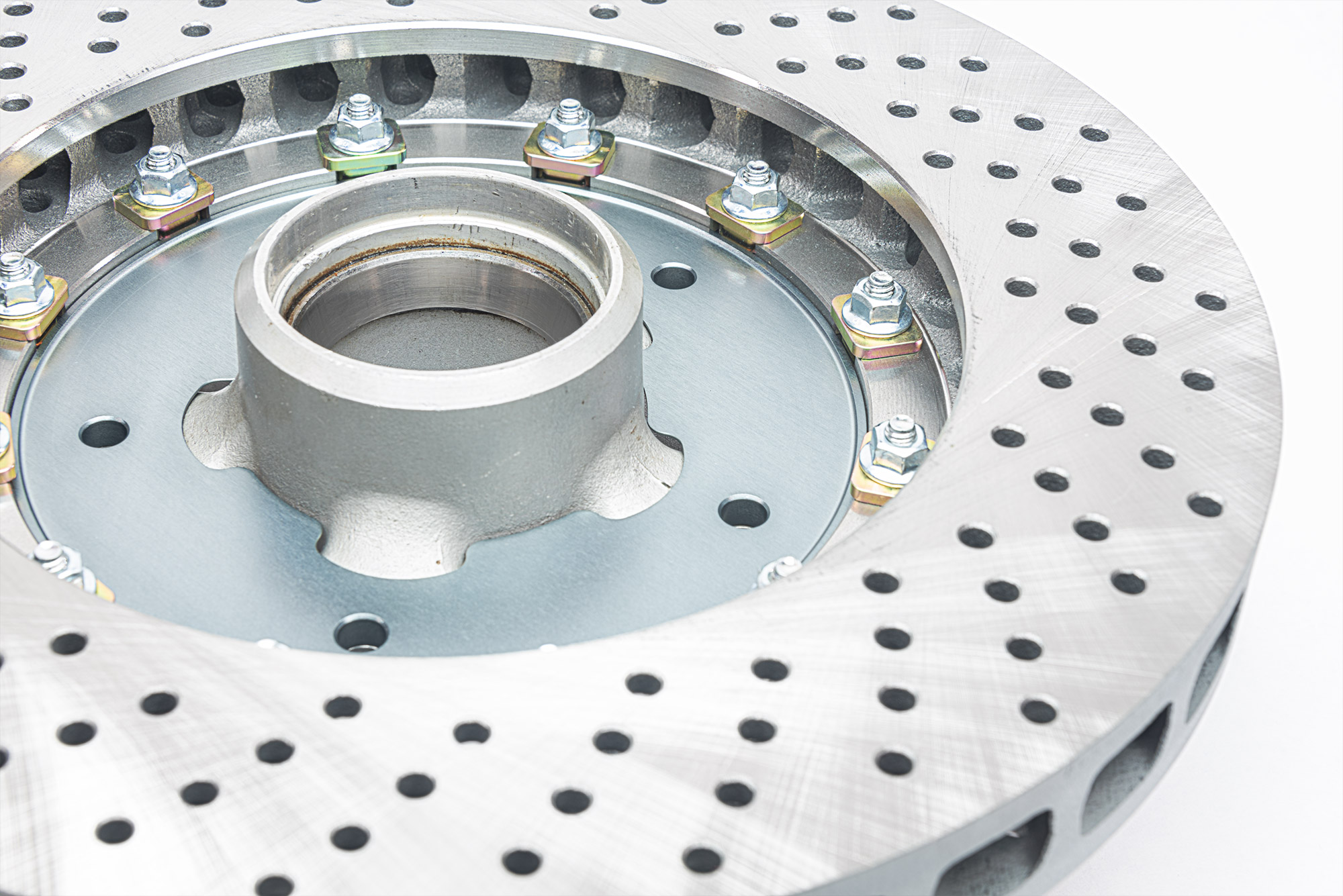

Front calipers fit with regular 911/914-6 5 lug hubs and use early type 930 two piece floating rotors with our hat kit #2190005 (floating) or #2190010 (fixed). 914-4 will use the same rotors and hat kit but require 911 5 lug hubs for fitment. Wide ’86-‘89 930 hubs may also be used and need to be paired with matching ’86-‘89 930 fixed rotors. These rotors are 304x32mm.
MASTER CYLINDER
Use standard 930 master cylinder on ’77-’89 911 cars equipped with a brake booster, or our master cylinder kit #2190011 for pre-77 cars with non-boosted brakes and all 914.

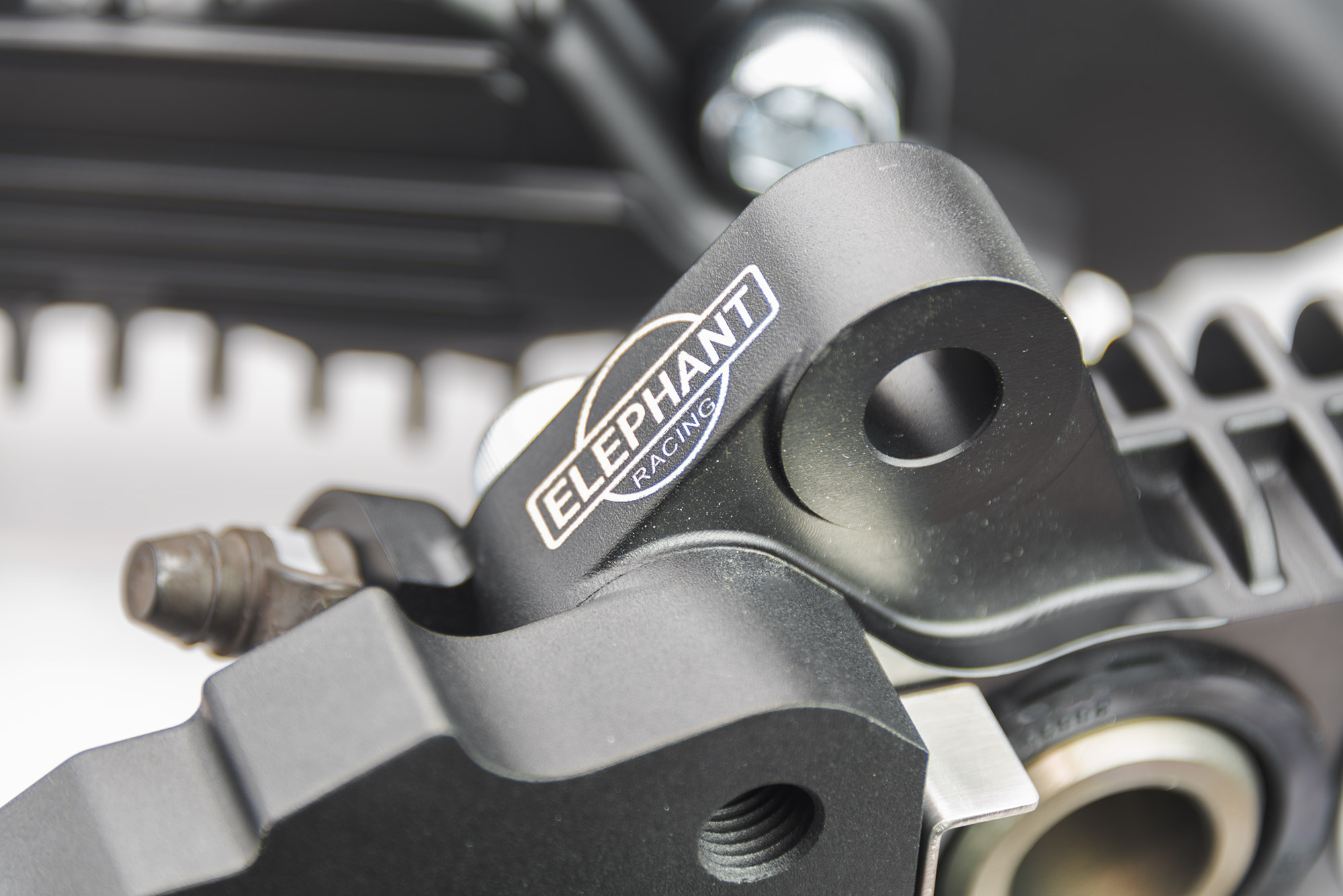

https://www.elephantracing.com/wp-content/uploads/930BrakeCalipers_004-150x100.jpg

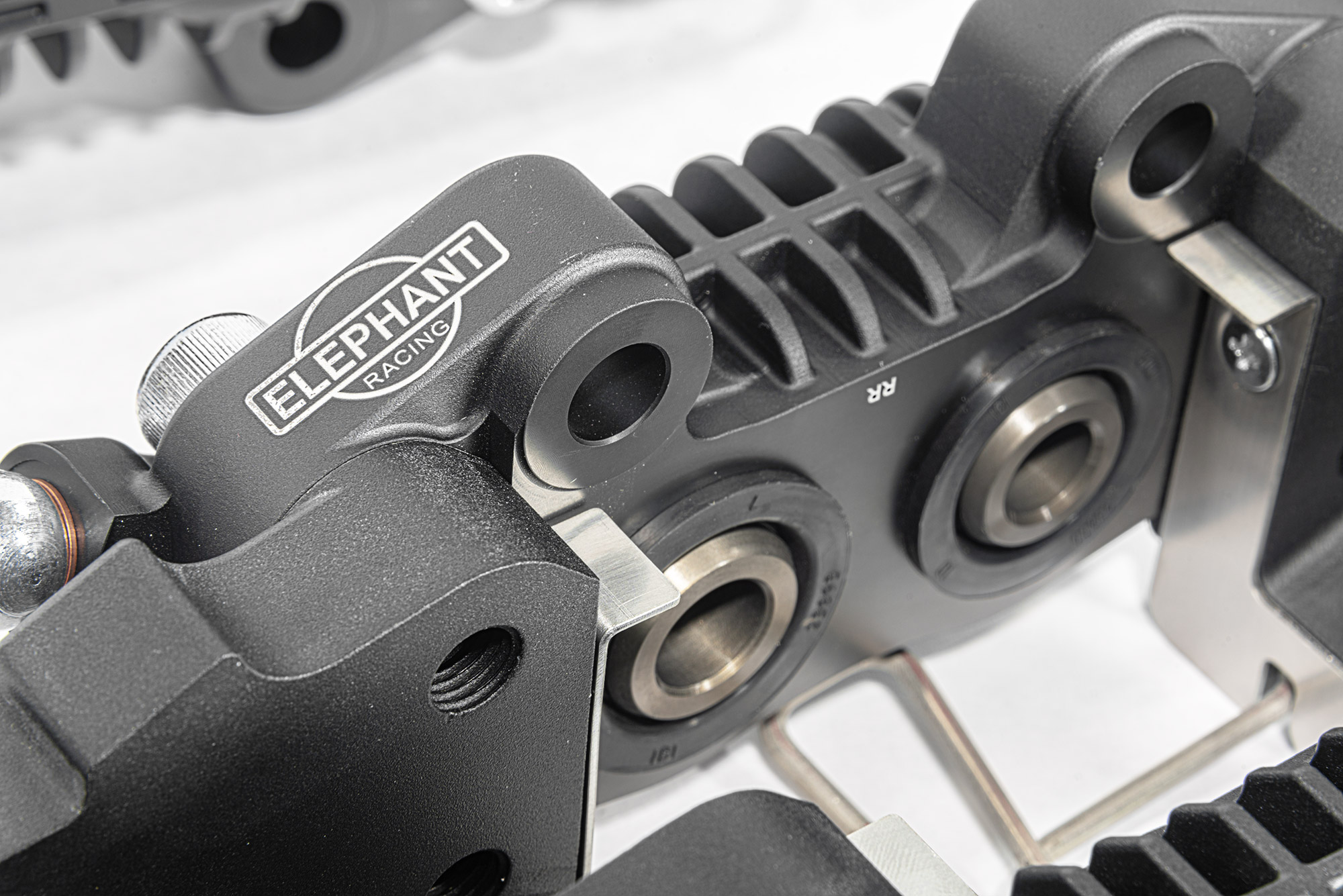

https://www.elephantracing.com/wp-content/uploads/930BrakeCalipers_003-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/930BrakeCalipers_002-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/930BrakeCalipers_006-150x100.jpg

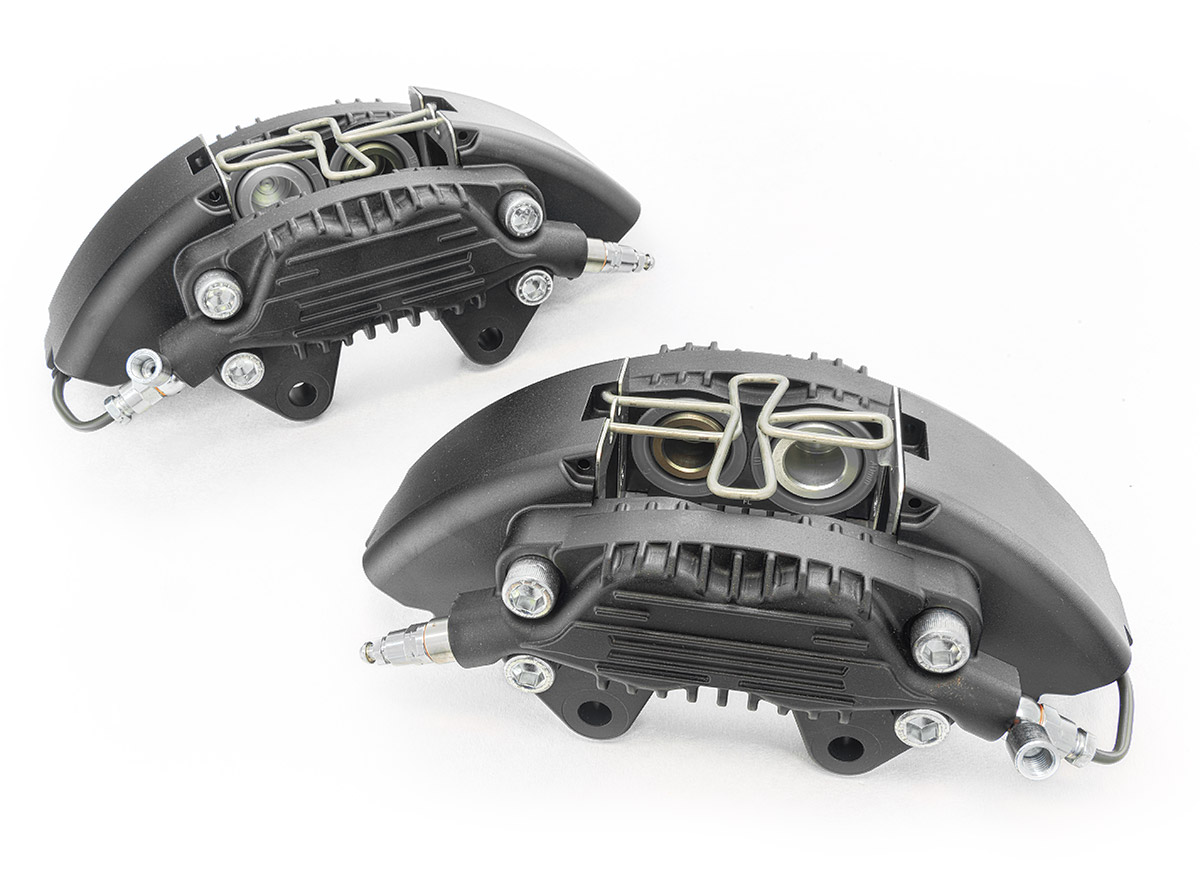

https://www.elephantracing.com/wp-content/uploads/930XER-front-brake-calipers_003-150x84.jpg
Front
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| G-2190020 | - | 930 ERX Front caliper pair for ’65-’76 911, 930, 912, 914 equipped with struts that have 3.0 caliper bolt center spacing. Use with 930 304x32mm front rotors 1 pair req'd per Car |
| G-2190006 | - | 930 ERX Front caliper pair for ’69-’89 911, 930, 912, 914 equipped with struts that have 3.5 caliper bolt center spacing. Use with 930 304x32mm front rotors 1 pair req'd per Car |
Rear
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| G-2190007 | - | 930 ERX Rear caliper pair for '69-'89 911, 930, 912, 914 w/ 3" caliper bolt center spacing. Use with 930 309x28mm rear rotors 1 pair req'd per Car |
Boxster brake conversions for 65-89 911, 912, and 914 are a proven path to better braking. This section provides ordering and information on the calipers alone.
Complete Boxster brake upgrade packages including these calipers are available here…

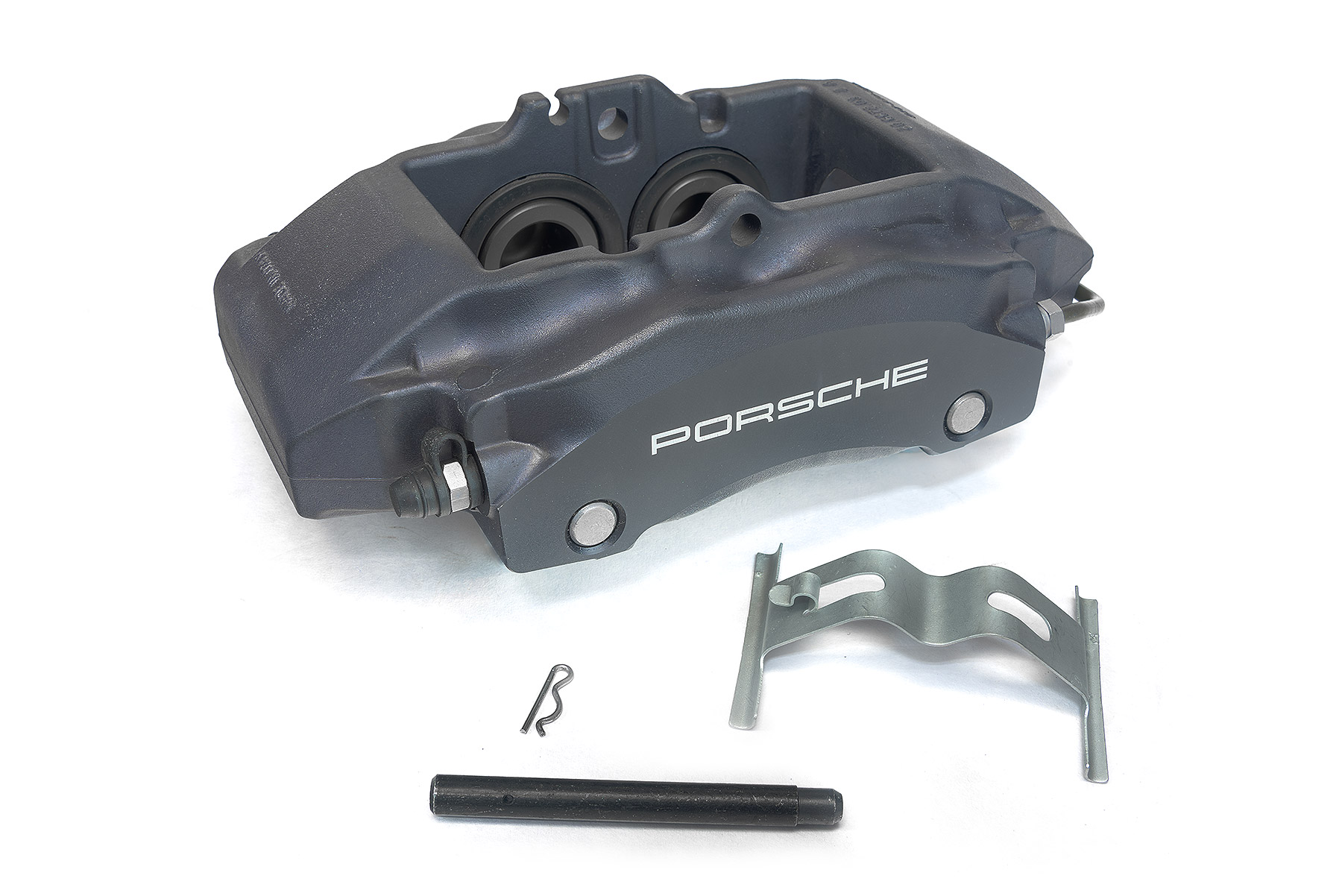

Boxster brake conversions provide enhanced pedal feel, making it easier to modulate braking. This improves control and ability to feather the pedal when threshold braking. Enhancements over original 911/912/914 calipers -The 4 piston monoblock design provides an impressive visual update, and delivers meaningful performance enhancements over stock 911/912/914 brake setups.
The staggered-size piston design provides even pad wear. It accommodates a much larger pad area than “A” and “M” type 911 calipers. The large pad delivers longer pad life and lower point temperatures since the pad/rotor contact is distributed over a larger area.
Made of lightweight aluminum alloy, Boxster calipers are a monoblock design. This makes them stiff, with very little flex under pressure – eliminating the spongy pedal feel associated with more flexible designs.
Boxster calipers are paired with standard 84-89 24mm wide front and 20mm rear rotors. These provide enhanced thermal capacity compared with pre-84 911/912/914 rotors.
Our Boxster caliper upgrade packages retain the parking brake functionality, and even fit under 15 inch wheels without issue.
Fitment and Compatibility
Front calipers required our adapter kit # 1-BoxsterBrakeFront.
Rear calipers required our adapter kit # 1-BoxsterBrakeRear.
Front and rear calipers accept standard Boxster brake pads.
Rear calipers use standard type ’84-’89 911 rotors part 911-352-014-08.
Front calipers use standard type ’84-’89 911 rotors 911-351-041-23.
Use standard 930 master cylinder on ’77-’89 911 cars equipped with brake booster, or our master cylinder kit #2190011 for pre-77 cars with non-boosted brakes.
Complete Boxster brake upgrade packages including these calipers are available here…
Front
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| G-98635142103 | - | '69-'89 911, 912 , 914-6 requires adapter kit # 1-BoxsterBrakeFront 914-4 will need a 5 lug conversion 1 pair req'd per Car |
Rear
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| G-98635242301 | - | '69-'89 911, 912, 914-6 requires adapter kit # 1-BoxsterBrakeRear 914-4 will need a 5 lug conversion 1 pair req'd per Car |
These adapter kits are required for mounting Boxster calipers onto 1965 to 1989 911/912/914.
Complete Boxster brake upgrade packages including these adapters are available here…

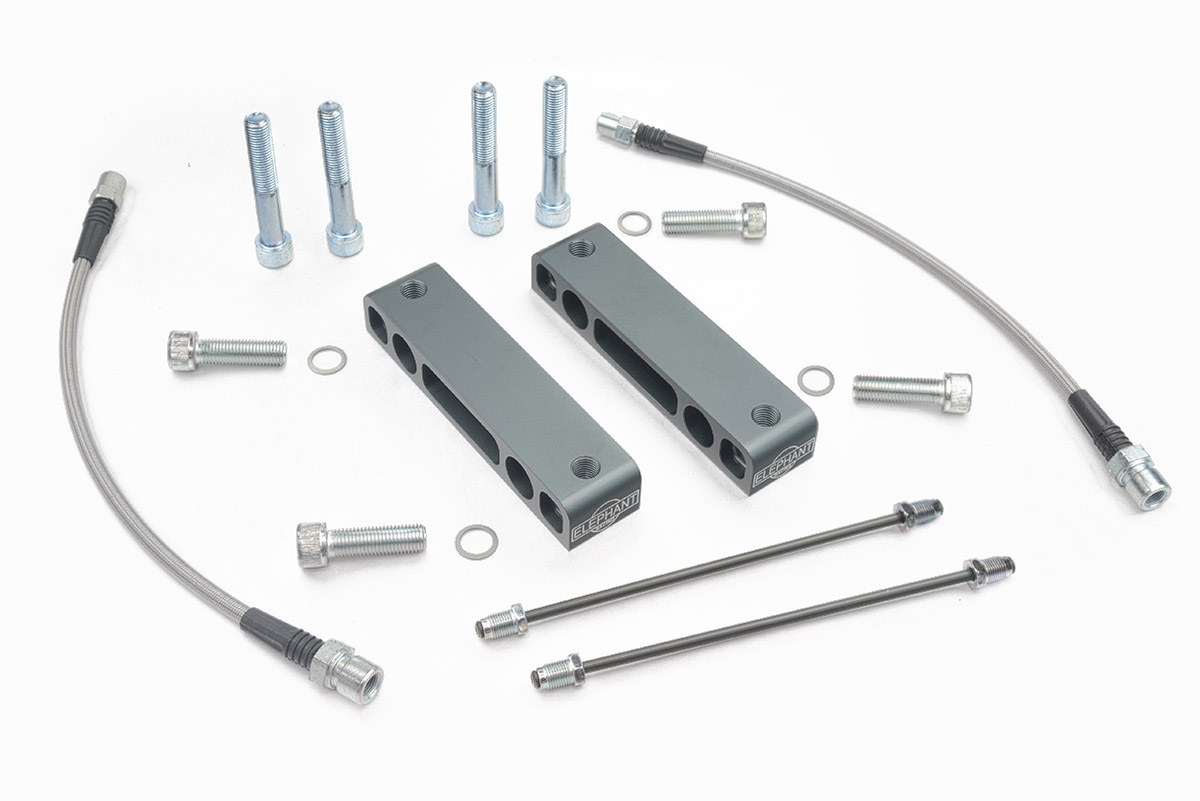

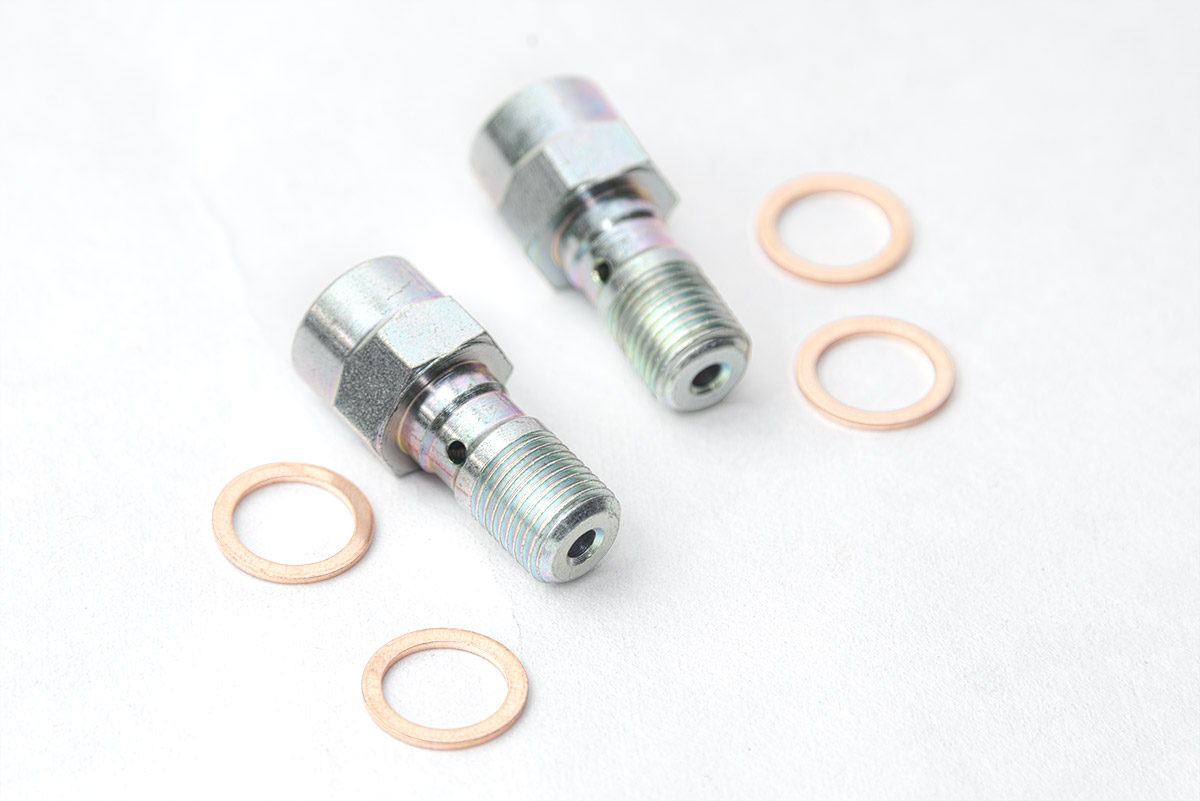

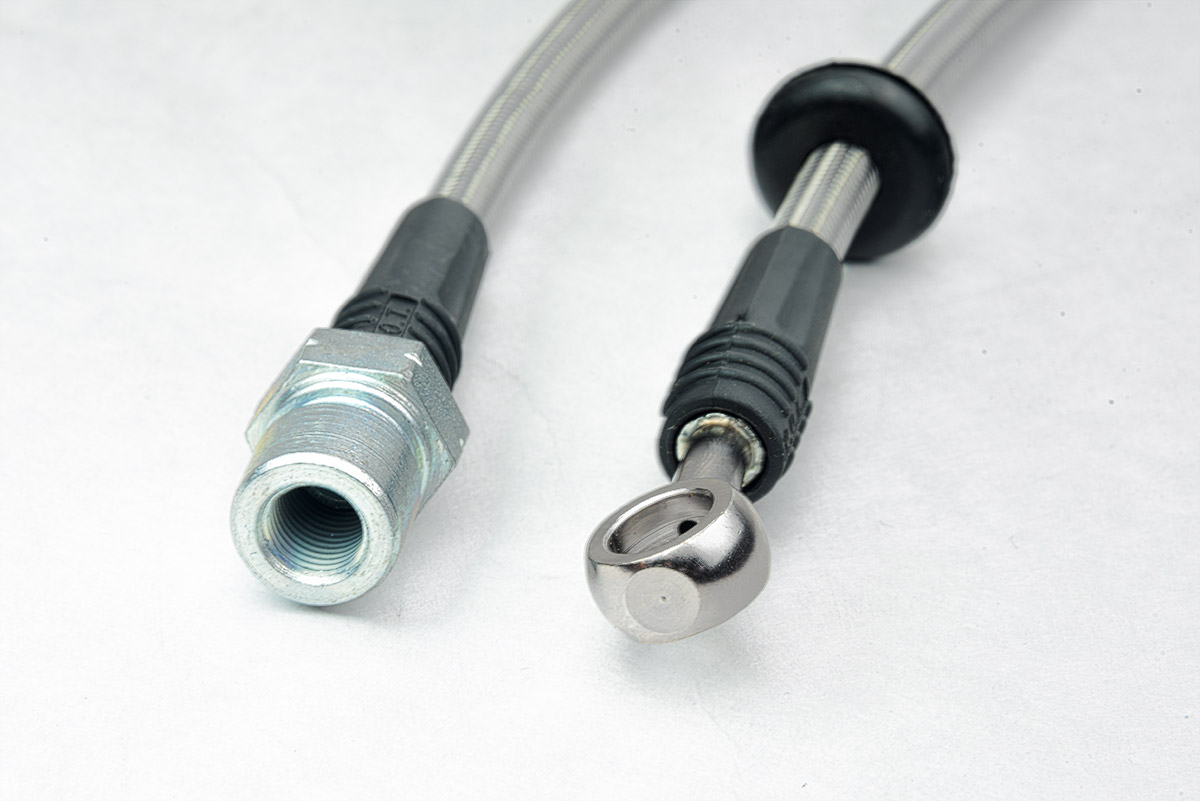

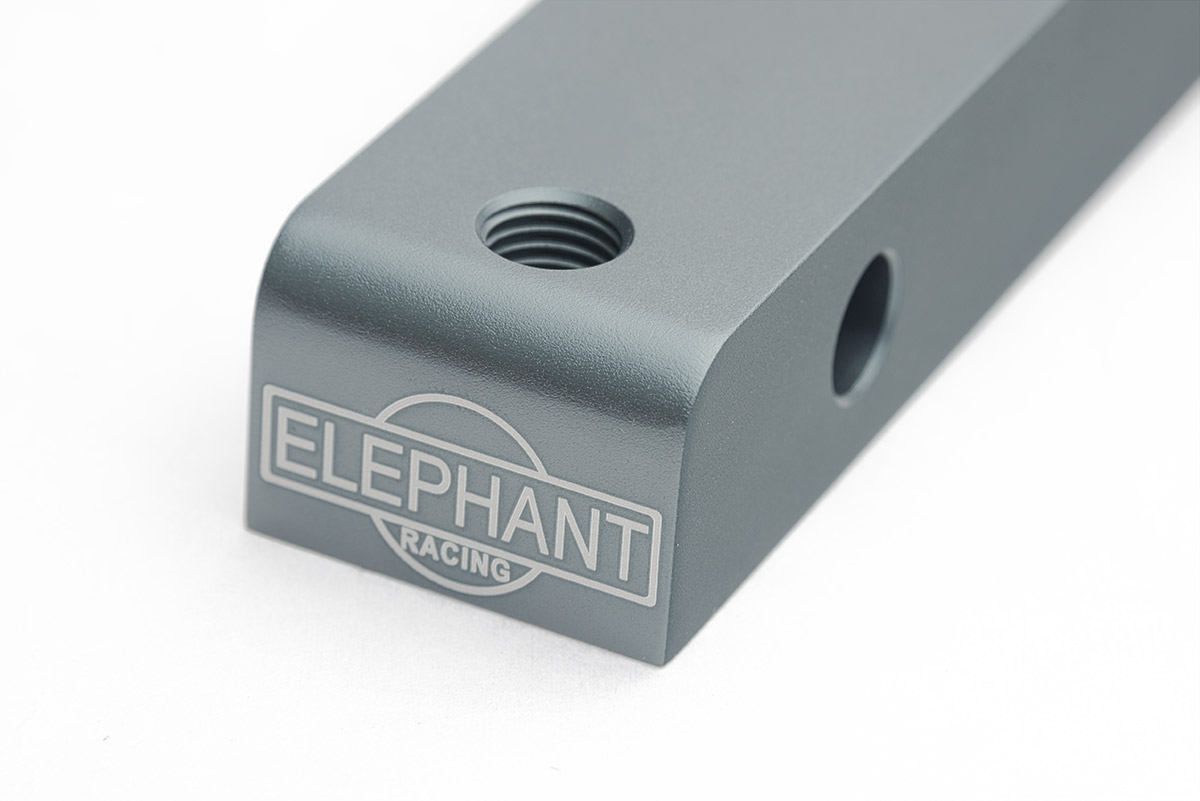

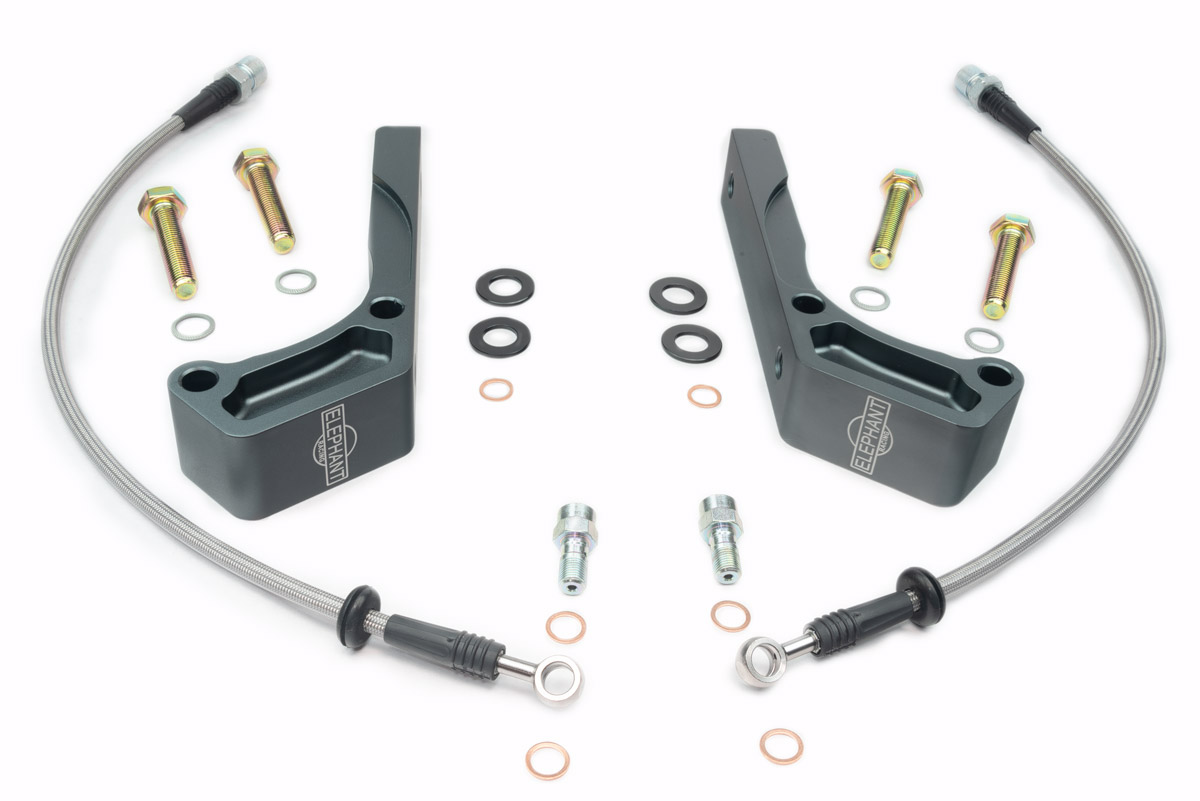

The kits include adapter blocks to convert Boxster axial mounting to the radial mounting required for the 911/912/914. Caliper brakes lines and all required mounting hardware is included.
Watch this Quick Overview
Fitment and Compatibility
Front and rear kits are for use with ’97-’04 986 Boxster calipers (non-S type).
The front adapter kits are for struts that have 3.5 inch bolt spacing and bolt directly to front struts as equipped on all 911 cars from ‘77-’89 and 911S models from ’69-’76. Pre-‘77 front struts equipped on 912, 914 and non-S 911 have 3.0 caliper bolt spacing and can convert to use 3.5 inch 911 type struts, contact us for details. If your car is pre-’77 measure your front caliper bolt spacing to confirm the distance center-to-center, many cars have had later 3.5 inch struts retrofit.

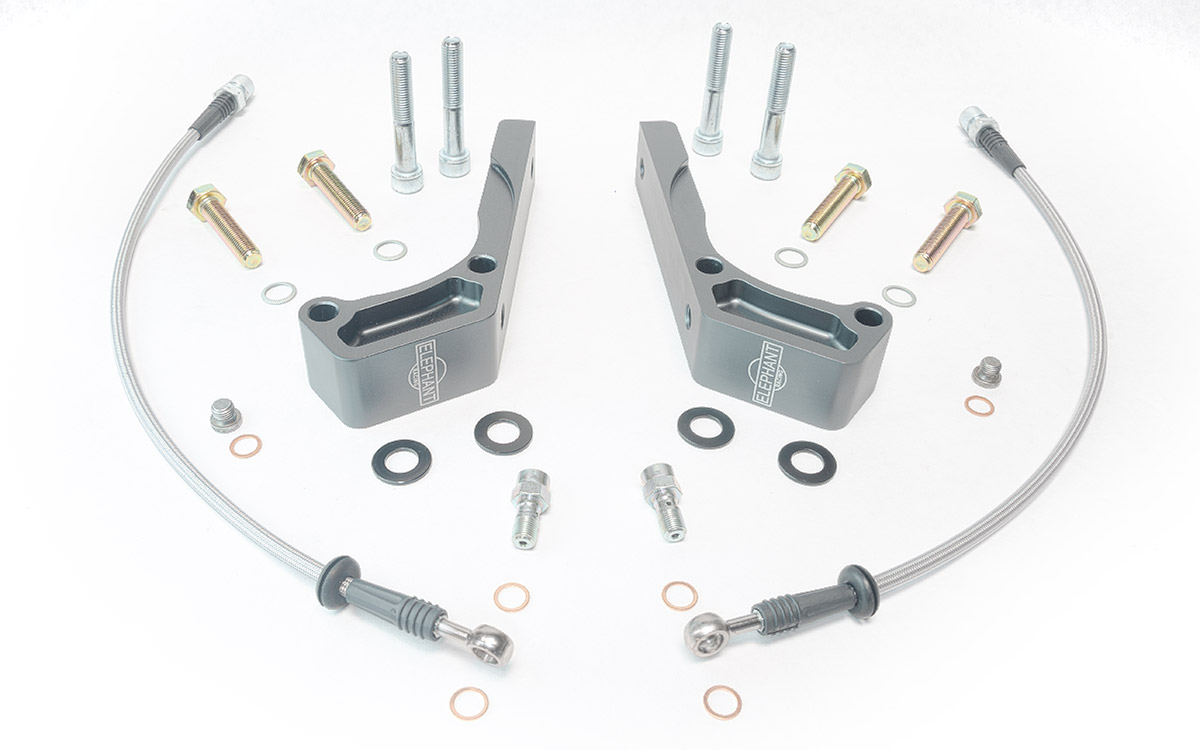

The rear adapter kits are available with 3.0 bolt spacing for direct fitment to 911, 912, & 914 trailing arms from ’69-’89 including aluminum and steel trailing arms. Rear adapter kits are also available with 2.25 inch bolt spacing for direct fitment on ’65-’68 short wheelbase trailing arms.
Both steel and aluminum trailing arms are supported. Aluminum trailing arms require the removal of heat shield mounting ears for fitment.
Front kits are for use with standard type ’84-’89 911 rotors 911-351-041-23.
Rear kits for ’69-’89 are for use with standard type ’84-’89 911 rotors part 911-352-041-08. Rear kits for ’65-’68 use standard type ’97-’04 996 rear rotors 996-352-401-05 and 911 brake shoes 911-352-097-10.
Complete Boxster brake upgrade packages including these adapters are available here…
Front

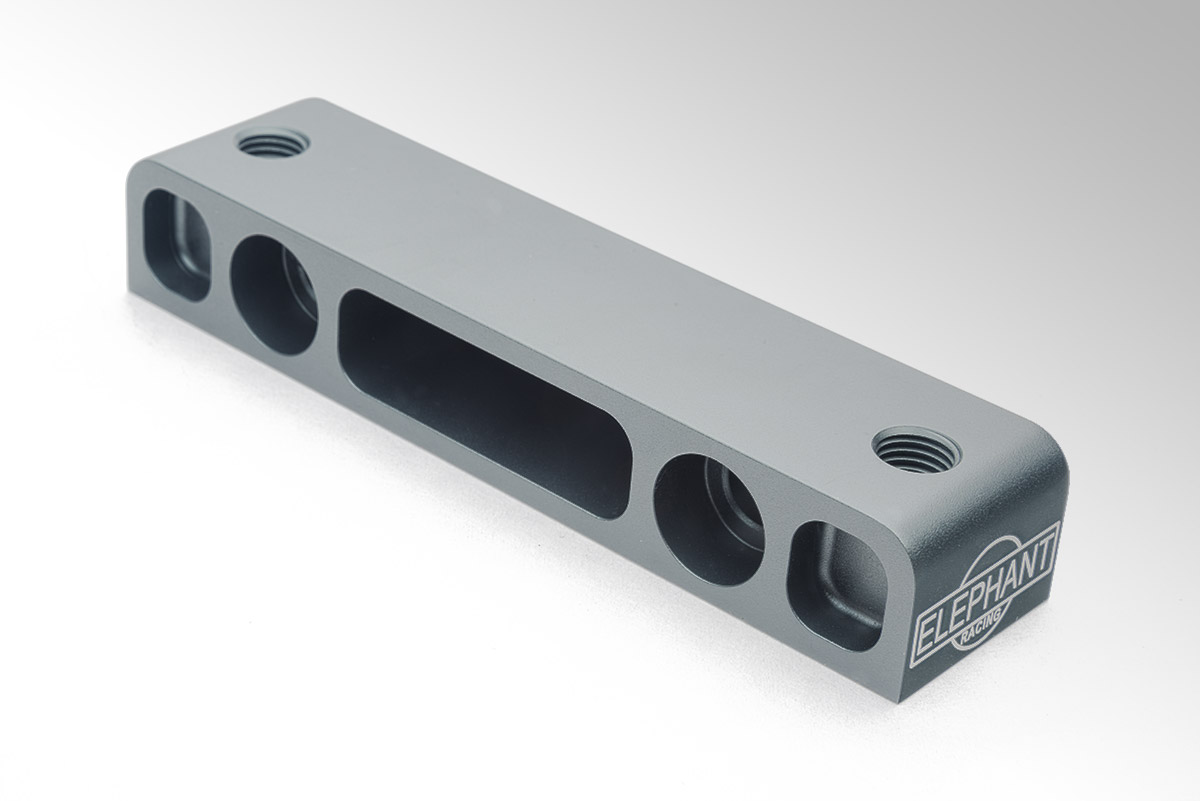

https://www.elephantracing.com/wp-content/uploads/Boxster-front-brake-adapter-detail_002-150x100.jpg

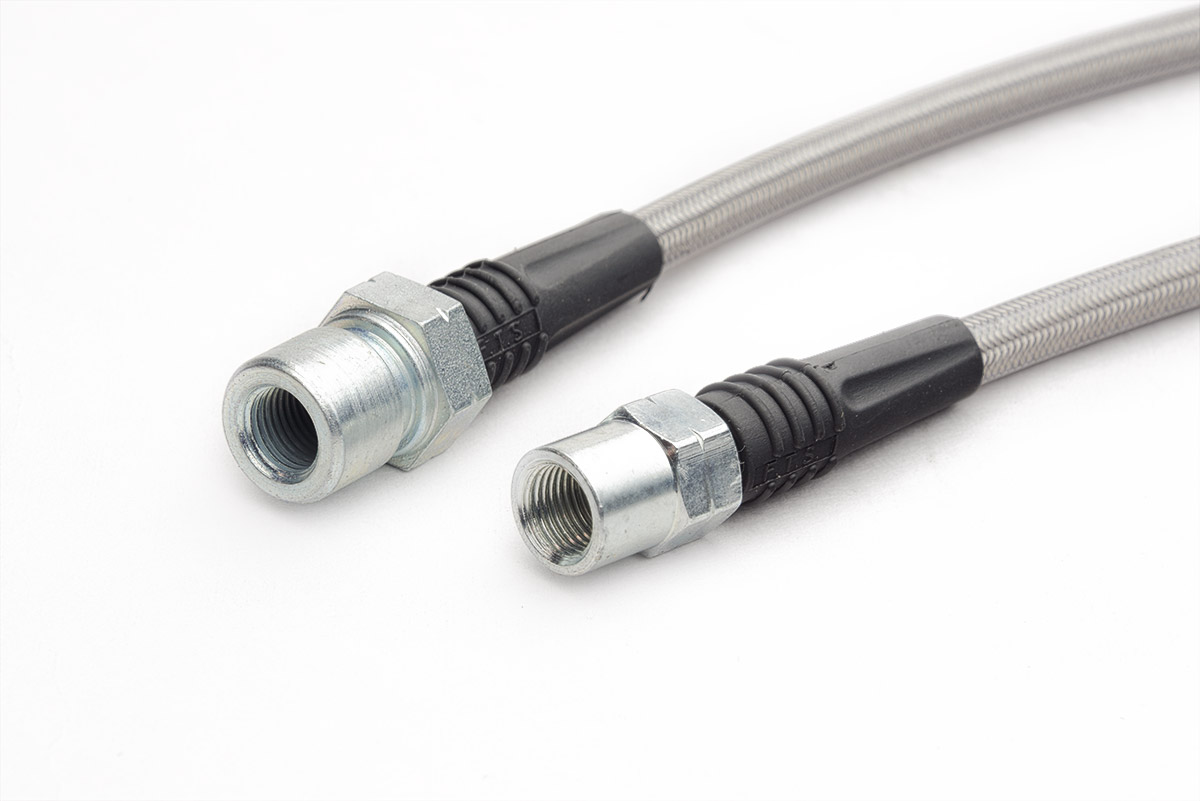

https://www.elephantracing.com/wp-content/uploads/Boxster-brake-lines-detail_001-150x100.jpg
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2190012 | - | Boxster front caliper adapter kit for ’65-’89 911, 912, 914 equipped with struts that have 3.5 caliper bolt spacing 1 kit req'd per Car |
Links for
Rear

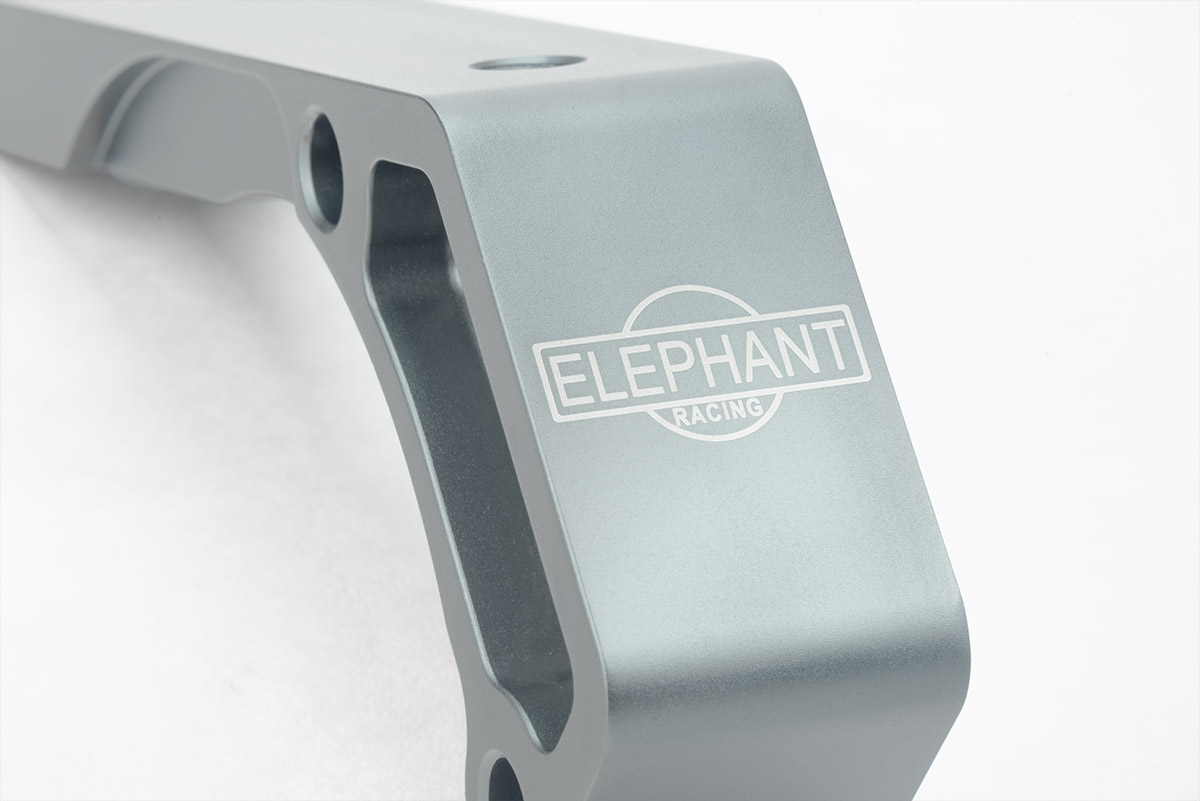

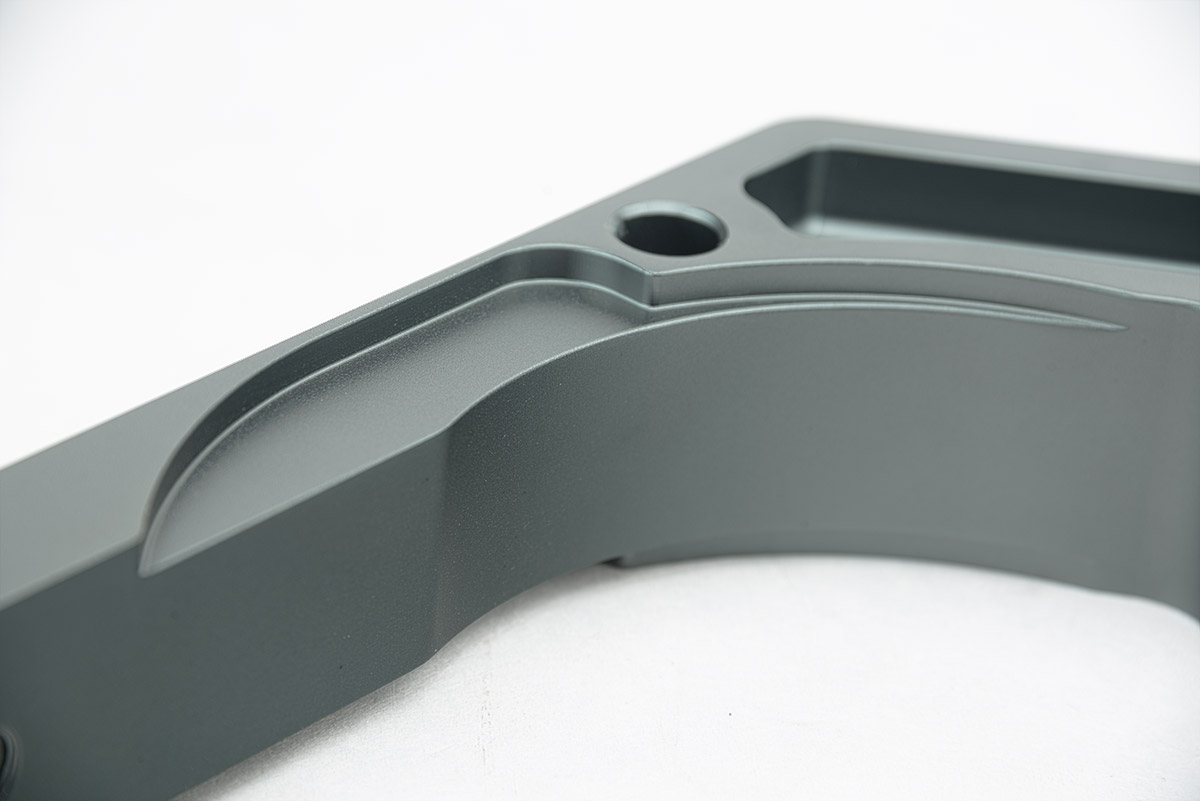

https://www.elephantracing.com/wp-content/uploads/Boxster-rear-brake-adapter-kit-bracket_004-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/Boxster-rear-brake-line-ends_005-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/Boxster-rear-brake-caliper-line-connectors_005-150x100.jpg

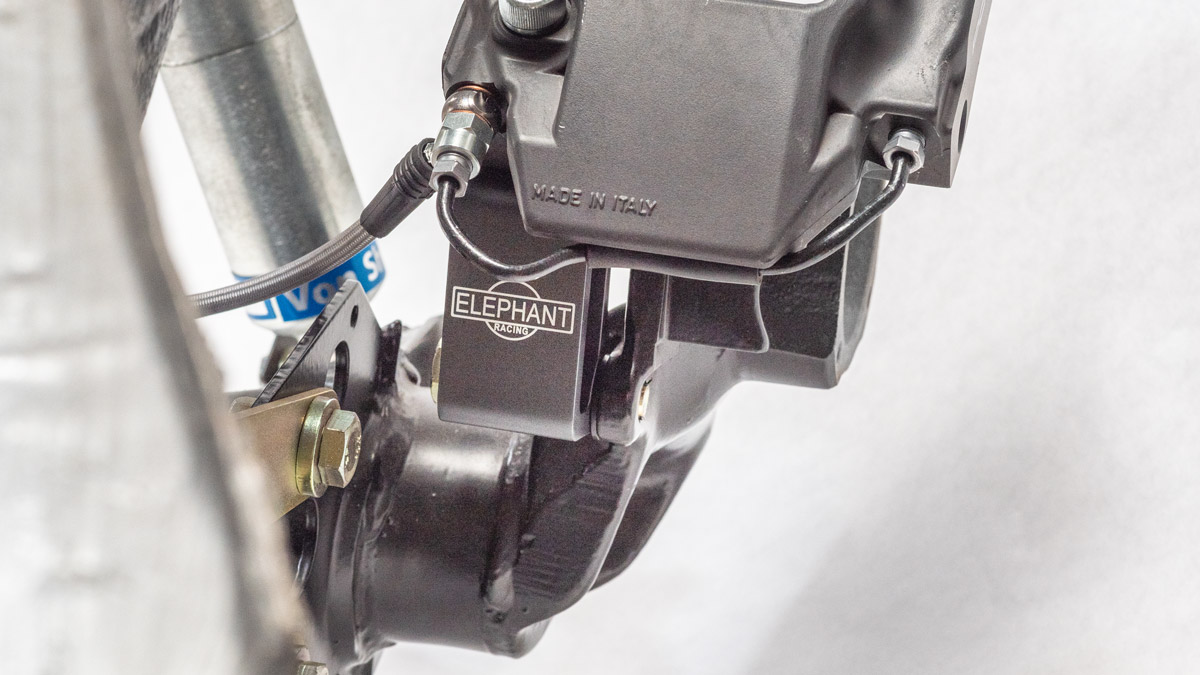

https://www.elephantracing.com/wp-content/uploads/Assembly_001a-150x84.jpg
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2190013 | - | Boxster rear caliper adapter kit for ’69-’89 911, 912, 914 with 3.0” caliper bolt spacing 1 kit req'd per Car |
Links for
