Oil Cooler Plumbing Kit

914-6 GT inspired

Plumbing Kit – Now it’s easy to add a front-mounted cooler to your
914-6 / conversion and achieve a professional result. Inspired by the 914-6 GT oil cooling system, we developed our plumbing kit to look, fit, and function like a factory production solution. This is the factory-option the factory never offered!

Plumbing kit includes everything you need to go from tank/engine up to the passenger side from wheel well.

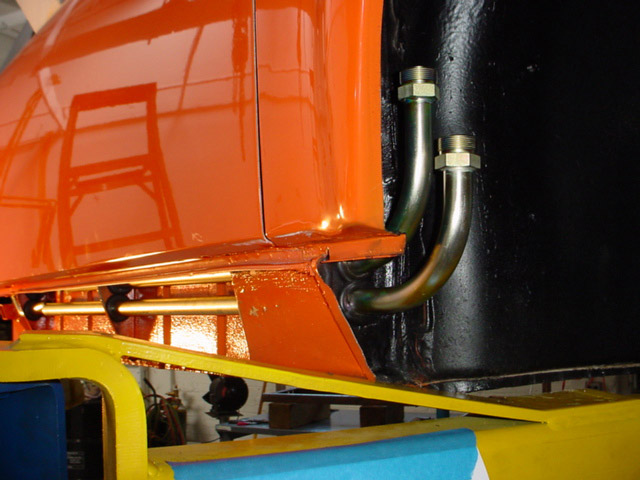

Hard Lines – CNC formed hard oil lines route beneath the passenger side rocker panel. This keeps the oil (and heat) out of the cabin.

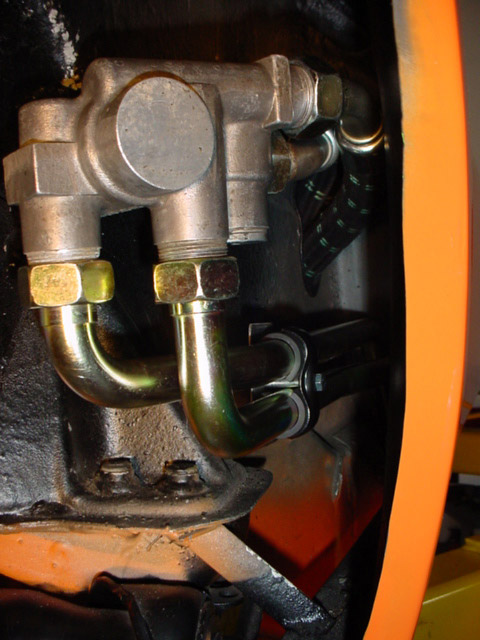

Thermostat – The genuine Porsche thermostat mounts in the passenger rear wheel well in front of the tire. It includes a pressure bypass to protect the cooler and ensure the engine doesn’t starve for oil in the event of blockage in the cooler section.

Metric Fittings – Factory-appearing hoses and Porsche-type 30mm fittings are used throughout. 30mm fittings deliver high-flow capacity and as used on all 911 engines from 72-89.

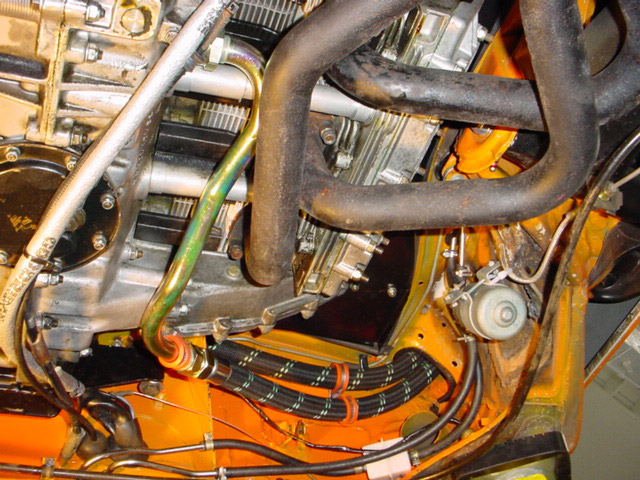

Engine Scavenge Pipe – Fits headers and even clears the factory 6 heat exchangers. Scavenge pipe has 30mm fittings at both ends. Engine case fitting is easily converted to matching 30mm if needed.

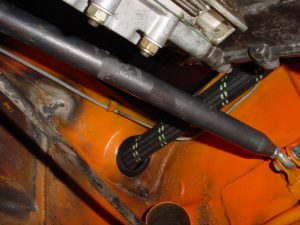

Oil Tank – We offer choices for the oil tank connection including 26mm, 30mm, and AN type hose ends.

Mounting – Included grommets and edge molding dress all pipe/hose pass-throughs to protect and prevent vibration noises. Includes a mounting bracket to support the thermostat and adel clamps for dressing the hoses.

Some cutting is required for installation. Templates included.

• “I just wanted to thank you for the 72 oil line setup you sold us. Everything went in with no issues… Thanks again for providing us great quality parts!” Eric W. – 911 Oil Cooler Kit

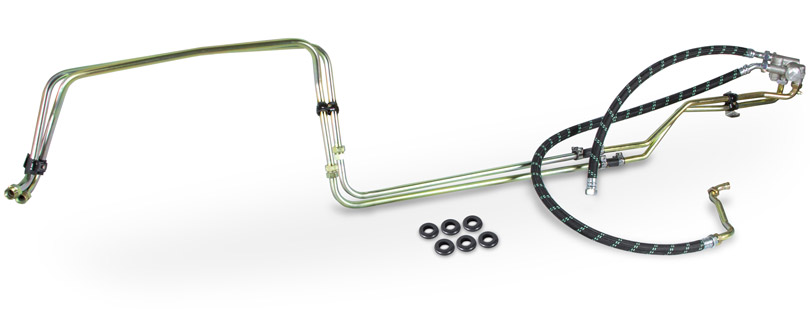

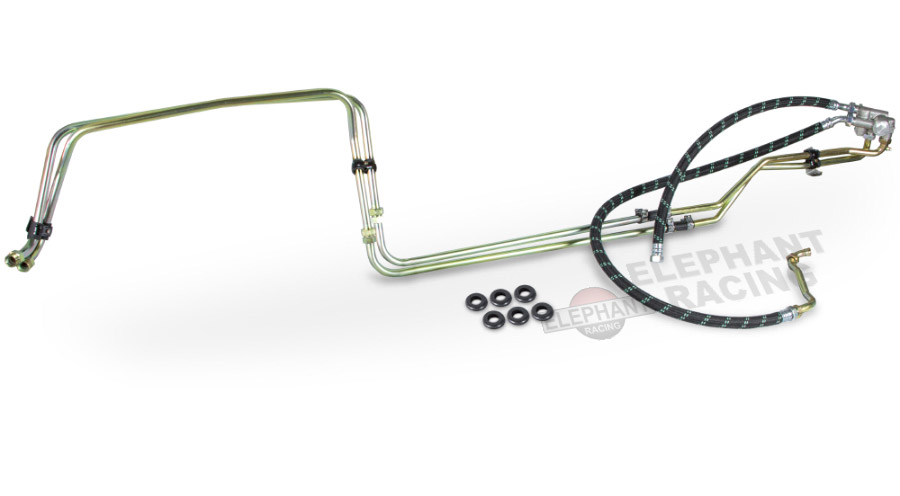

Kit Contents

• Hard Line kit
• Thermostat
• Scavenge pipe
• Scavenge pipe to thermostat line
• Tank to thermostat line
• Support bracket kit
• Instructions & Templates
