Setrab Oil Coolers
For Porsche 944
Setrab oil coolers combine high quality with high flow capacity for custom cooler applications. A variety of sizes and fitting types are available to meet your needs.STD series is available in a range of sizes and can be used in center valance, fender and other locations. Suitable for use as an engine or transaxle cooler.
Choose fittings for Porsche 30mm hoses, or AN-type fittings, order separately below.
Optionally choose our Side Mount Kit, order separately below.
Complete oil cooler kits for Porsche fitment are available here.
Setrab Oil Cooler Fitment
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 1-STD948 | - | A:16", B:14-1/2", C:14-1/2", D:2" qty req'd may vary |
| 1-STD925 | - | A:16", B:14-1/2", C:7-1/2", D:2" qty req'd may vary |
| 1-STD920 | - | A:16", B:14-1/2", C:6", D:2" qty req'd may vary |
| 1-STD915 | - | A:16", B:14-1/2", C:4-1/2", D:2" qty req'd may vary |
| 1-STD910 | - | A:16", B:14-1/2", C:3", D:2" qty req'd may vary |
| 1-STD660 | - | A:13", B: 11-1/4", C:18-1/2", D:2" qty req'd may vary |
| 1-STD650 | - | A:13", B: 11-1/4", C:15-1/4", D:2" qty req'd may vary |
| 1-STD640 | - | A:13", B: 11-1/4", C:12", D:2" qty req'd may vary |
| 1-STD634 | - | A:13", B: 11-1/4", C:10-1/4", D:2" qty req'd may vary |
| 1-STD625 | - | A:13", B: 11-1/4", C:7-1/2", D:2" qty req'd may vary |
| 1-STD619 | - | A:13", B: 11-1/4", C:5-3/4", D:2" qty req'd may vary |
| 1-STD616 | - | A:13", B: 11-1/4", C:4-3/4", D:2" qty req'd may vary |
| 1-STD613 | - | A:13", B: 11-1/4", C:4", D:2" qty req'd may vary |
| 1-STD610 | - | A:13", B: 11-1/4", C:3", D:2" qty req'd may vary |
| 1-STD607 | - | A:13", B: 11-1/4", C:2", D:2" qty req'd may vary |
| 1-STD272 | - | A:9-1/4", B:7-1/4", C:22-1/2", D:2", Diagonal Flow qty req'd may vary |
| 1-STD172 | - | A:8-1/4", B:6-1/4", C:22-1/2", D:2" qty req'd may vary |
| 1-STD150 | - | A:8-1/4", B:6-1/4", C:15-1/4", D:2" qty req'd may vary |
| 1-STD125 | - | A:8-1/4", B:6-1/4", C:7-1/2", D:2" qty req'd may vary |
| 1-STD119 | - | A:8-1/4", B:6-1/4", C: 5-3/4", D:2" qty req'd may vary |
| 1-STD113 | - | A:8-1/4", B:6-1/4", C:4", D:2" qty req'd may vary |
| 1-STD110 | - | A:8-1/4", B:6-1/4", C:3", D:2" qty req'd may vary |
| 1-STD107 | - | A:8-1/4", B:6-1/4", C:2", D: 2" qty req'd may vary |
| 1-COM500-15 | - | A:23-1/2", B:19-1/2", C:5-3/4", D:2-1/4" qty req'd may vary |

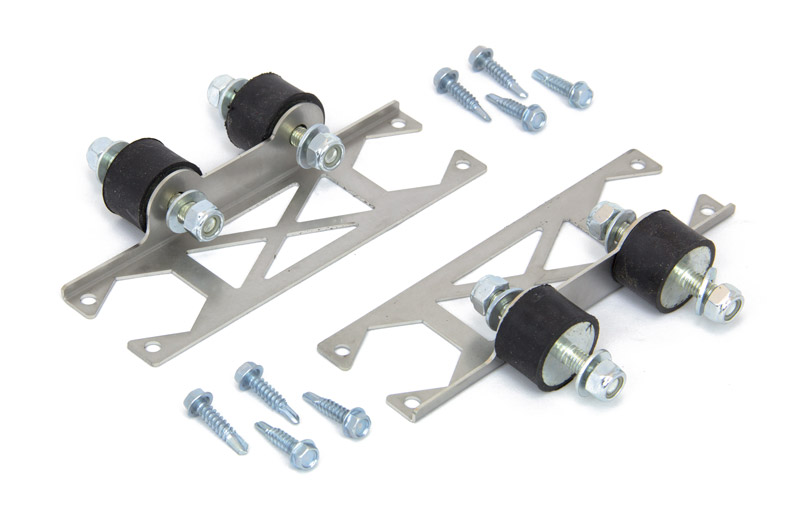

A complete bolt-on kit that allows mounting from the sides, yielding a compact installation. Allows the built-in mounting tabs to be cut off, reducing the “A” dimension of the cooler by 2 inches.
Kit includes stainless steel brackets, rubber isolators, all-metric hardware, and spacers sized specifically for mounting to the front tub of Porsche 911/930. Can be easily adapted to other fitments.
Compatible With These Coolers
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 0111101 | - | '65-'89 911/930, Fits all 1 Series STD coolers 1 req'd per n/a |
AN-4 thru AN-16
AN fittings are available in choice of size from AN-4 to AN-16. Straight-cut male M22 thread fits the engine case scavenge port, Carrera and C2/993 oil coolers with threaded fittings, Setrab, and Mocal oil coolers.
- M22 side uses the included sealing ring.
- AN side fits standard AN hose ends.
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 1-m22an16 | - | M22 to AN-16 fitting qty req'd may vary |
| 1-m22an12 | - | M22 to AN-12 fitting qty req'd may vary |
| 1-m22an10 | - | M22 to AN-10 fitting qty req'd may vary |
| 1-m22an8 | - | M22 to AN-8 fitting qty req'd may vary |
| 1-m22an6 | - | M22 to AN-6 fitting qty req'd may vary |
| 1-m22an4 | - | M22 to AN-4 fitting qty req'd may vary |

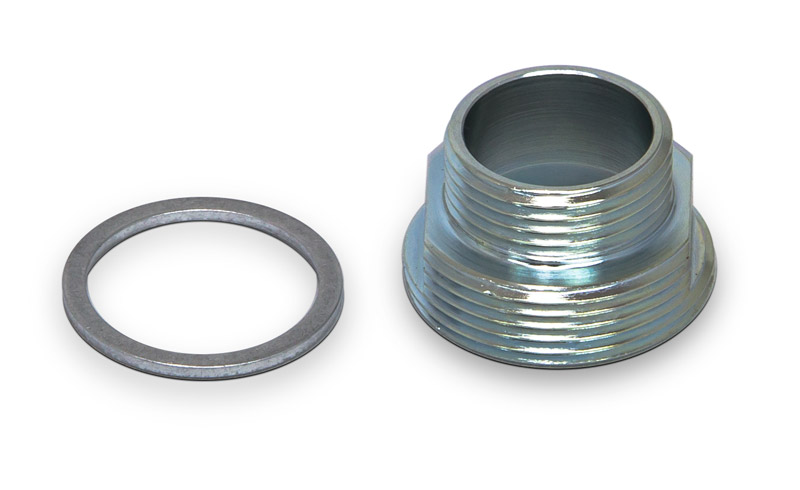

Low Profile Setrab Fitting
Straight-cut male M22 thread fits Setrab and Mocal oil coolers. Also fits the engine case scavenge port, Carrera and C2/993 oil coolers.
This special low-profile fitting is about .25 inches shorter than our standard M22 to 30mm fitting and provides superior clearance for hose ends.
- M22 side uses the included crush washer to seal.
- 30mm side fits 30mm hose ends.
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 0111100 | Porsche part number "999 136 045 09"M22 to 30mm fitting, Porsche part #999-136-045-09999 136 045 09 | Low-Profile Setrab Oil Cooler Fitting qty req'd may vary |
Speak to an expert: 1.408.297.2789
