Von Shocks™ Coilover System
For Porsche 964
Dyno Tuned Matched Sets Ready To Bolt-on
Coilover systems from Von Shocks, Complete systems fully engineered and ready to bolt on. No guesswork, tuned spring rates, shock valving, spring lengths and bump stops that all work together right out of the box.
Von Coilover Complete Systems
Bolt on a complete balanced system including threaded body struts, springs, all hardware, assembled and ready to go.
Von Shocks – Standard with high pressure nitrogen gas sealed Von Street inserts.
Levels – Choose from 4 levels, each tuned with springs and valving matched to your planned usage:
- Level 1 – Street performance, canyon carver
- Level 2 – Autocross, Drivers Education
- Level 3 – Time trial
- Level 4 – Dedicated race car
Pair-Matched – Each and every Von shock is computer shock dyno-tested. Dyno plots are then used to choose hand-picked pairs, thus delivering unrivaled consistency and shocks that truly match.
Complete hardware – Kits are complete with main springs and helpers springs to keep springs in tension even at full droop. Both front and rear kits include spring seat bearing to prevent spring windup.
Camber Plates – Camberplate kits can be ordered separately to enhance the performance of your coilover system.
- “I knocked 10 seconds off my best time @ Sebring with your suspension products, I could not be happier with the results.”
- Dave D. – 911 Suspension Upgrade

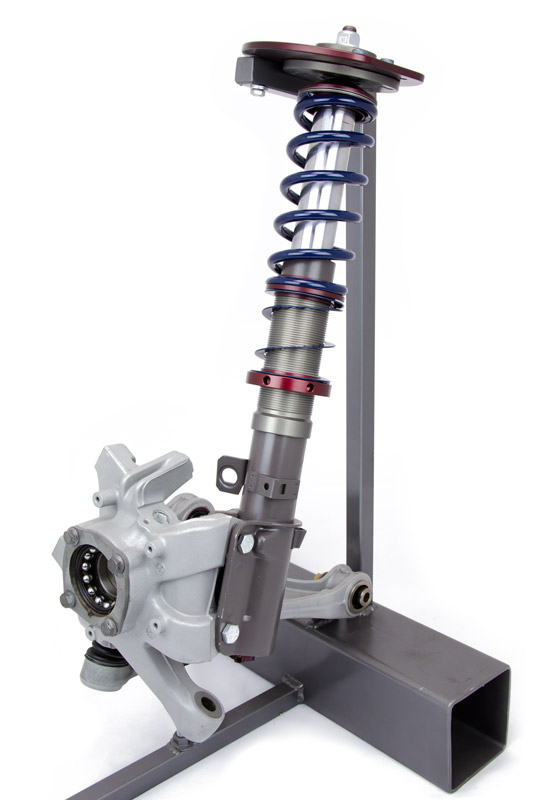

Von Coilover system front
Note: Front suspension assembly and camber plate not included.
Front
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2310100 | - | Level 0, '89-'94 964 non-trubo 1 pair req'd per Car |
| 2313101 | - | Level 1, '89-'94 964 non-trubo 1 pair req'd per Car |
| 2313102 | - | Level 2, '89-'94 964 non-trubo 1 pair req'd per Car |
| 2313103 | - | Level 3, '89-'94 964 non-trubo 1 pair req'd per Car |
| 2313104 | - | Level 4, '89-'94 964 non-trubo 1 pair req'd per Car |
| 2313900 | - | '89-'94 964 turbo, '95-'98 993, Level 0 Von Street 1 pair req'd per Car |
| 2313901 | - | '89-'94 964 turbo, '95-'98 993, Level 1 Von Street 1 pair req'd per Car |
| 2313902 | - | '89-'94 964 turbo, '95-'98 993, Level 2 Von Street 1 pair req'd per Car |
| 2313903 | - | '89-'94 964 turbo, '95-'98 993, Level 3 Von Street 1 pair req'd per Car |
| 2313904 | - | '89-'94 964 turbo, '95-'98 993, Level 4 Von Street 1 pair req'd per Car |
Rear
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2313301 | - | Level 1, '89-'90 964 1 pair req'd per Car |
| 2313302 | - | Level 2, '89-'90 964 1 pair req'd per Car |
| 2313303 | - | Level 3, '89-'90 964 1 pair req'd per Car |
| 2313304 | - | Level 4, '89-'90 964 1 pair req'd per Car |
| 2314401 | - | Level 1, '91-94 964 1 pair req'd per Car |
| 2314402 | - | Level 2, '91-94 964 1 pair req'd per Car |
| 2314403 | - | Level 3, '91-94 964 1 pair req'd per Car |
| 2314404 | - | Level 4, '91-94 964 1 pair req'd per Car |
