Swaybars & Drop Links

For Porsche 993

  • Control body roll, adjust for over/under steer, manage tire contact patch, and eliminate binding by upgrading swaybars and drop links.

Front & Rear Swaybars

RS Swaybars

The standard front swaybar is 20mm thick. A 23mm RS 5-way adjustable front swaybar allows you to easily fine-tune understeer/oversteer and roll stiffness. A great upgrade for cars used on both street and track.

US spec standard rear swaybar is 17mm while ROW Standards bars are 18mm. The 20mm RS 3-position adjustable rear swaybar is a matched upgrade with the RS front swaybar above.

M030 Swaybars

The 22mm M030 front and 20mm M030 rear swaybars are good upgrades for cars with standard suspension but are not adjustable.

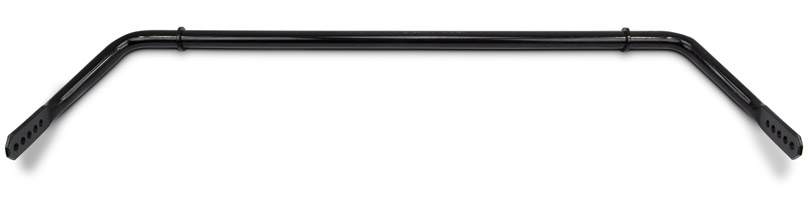

Front

Adjustable Front Swaybars for Porsche

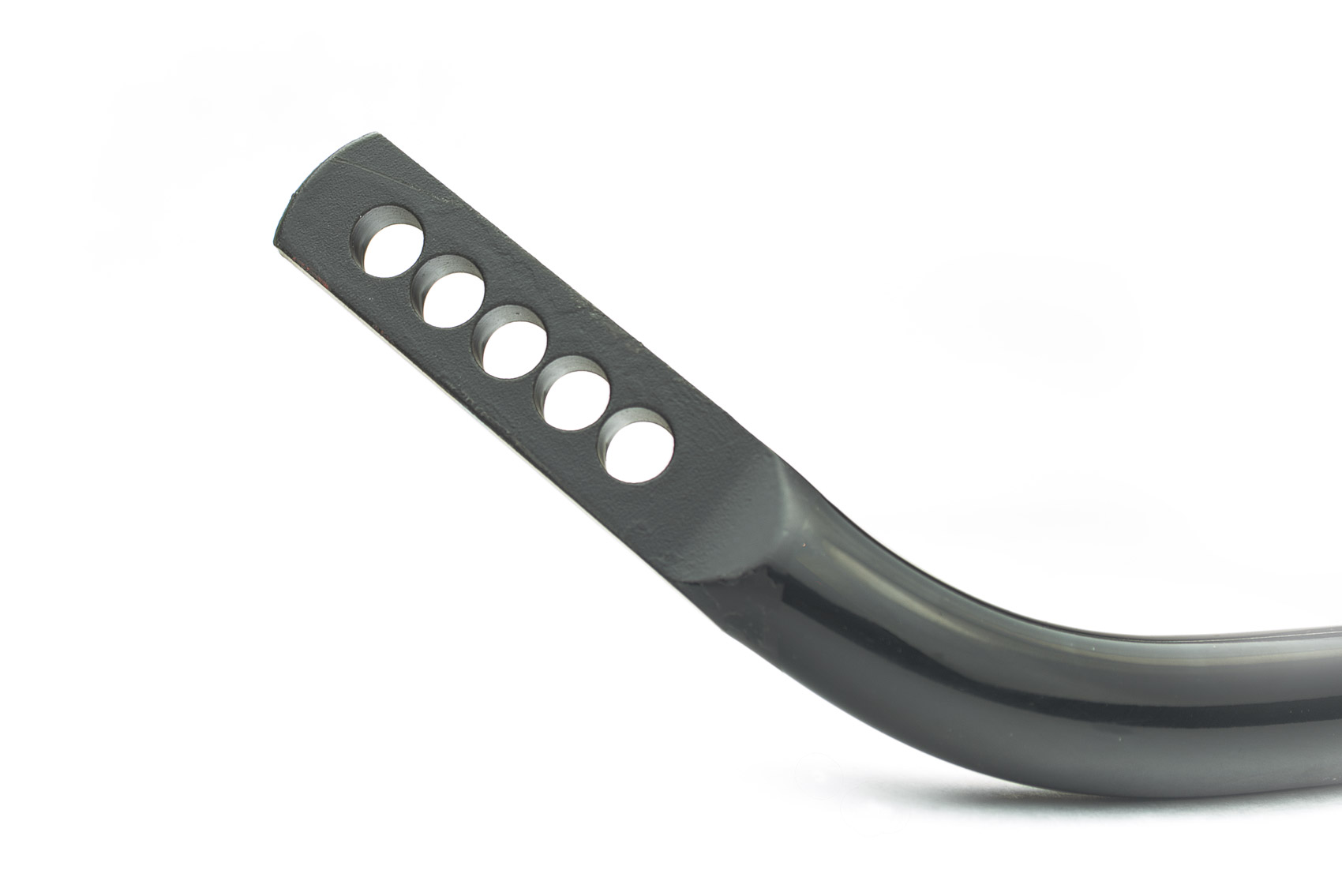

https://www.elephantracing.com/wp-content/uploads/5-way-adjustable-swaybar-for-porsche-993_001-150x100.jpg5 way adjustable swaybar for Porsche 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99334370701

Porsche part number "993 343 707 01"

Front swaybars, Porsche part #993-343-707-01

993 343 707 01		M030 Front 22mm, non-adjustable,
'95-'98 993 C2/C4
1 req'd per Car
1-99334370781

Porsche part number "993 343 707 81"

Front swaybars, Porsche part #993-343-707-81

993 343 707 81		RS Front 23mm, 5-way adjustable,
'95-'98 993 C2/C4

1 req'd per Car

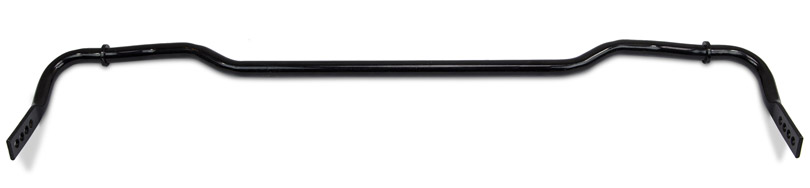

Rear

Adjustable Rear Swaybars for Porsche

https://www.elephantracing.com/wp-content/uploads/3-way-adjustable-swaybar-for-porsche-993_001-150x100.jpg3 way adjustable swaybar for Porsche 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99333370105

Porsche part number "993 333 701 03"

Rear swaybars, Porsche part #993-333-701-03

993 333 701 03		'95-'98 993,
M030 Rear 20mm, non-adjustable
1 req'd per Car
1-99333370781

Porsche part number "993 333 707 81"

Rear swaybars, Porsche part #993-333-707-81

993 333 707 81		'95-'98 993,
RS Rear 20mm, 3-way adjustable
1 req'd per Car

Front & Rear Adjustable Drop Links

The ideal swaybar is completely unloaded at static ride height. Stock drops links almost always preload the swaybar since the car doesn’t sit perfectly level due to asymmetries such as driver weight.Our front and rear adjustable-length drop links for C4/C2 allow you to eliminate preload of the swaybar for maximum performance.

A preloaded swaybar shifts the weight carried by each of the tires, increasing grip on weighted tires at the expense of decreasing grip on un-weighted tires. This shifted weight/grip causes uneven handling in left and right turns, and premature brake lockup since the less-loaded tire locks up first. Preload can be completely eliminated by adjusting drop link length and swaybar performance optimized.

  • Maintenance-free precision rod ends
  • Weather-sealed
  • Direct Bolt-on replacement
  • “Just wanted to let you know I had the drop links installed last week, perfect fit and the car handles so much better now. Elephant has great products, so glad I purchased these parts.”Chris L., Adjustable Drop Links

Watch this 964 Quick Overview

Watch this 993 Quick Overview

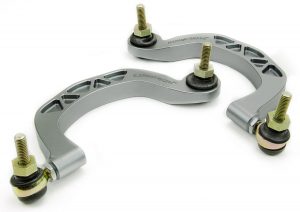

Front

Front adjustable drop links for Porsche 964 & 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
2271011-'95-'98 993 C2 & C4
1 pair req'd per Car

Links for Front Adjustable Drop Links

DIY Front Adjustable Drop Link Installation

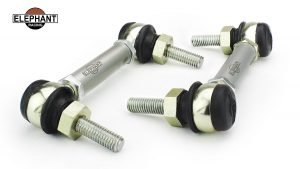

Rear for Standard & M030

Adjustable drop links for Porsche 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
2271006-'95-'98 993 C4/C2 Stock & M30 Type
1 pair req'd per Car




Rear for RS

Adjustable rear drop links for Porsche 993 C4 / C2 RS Type

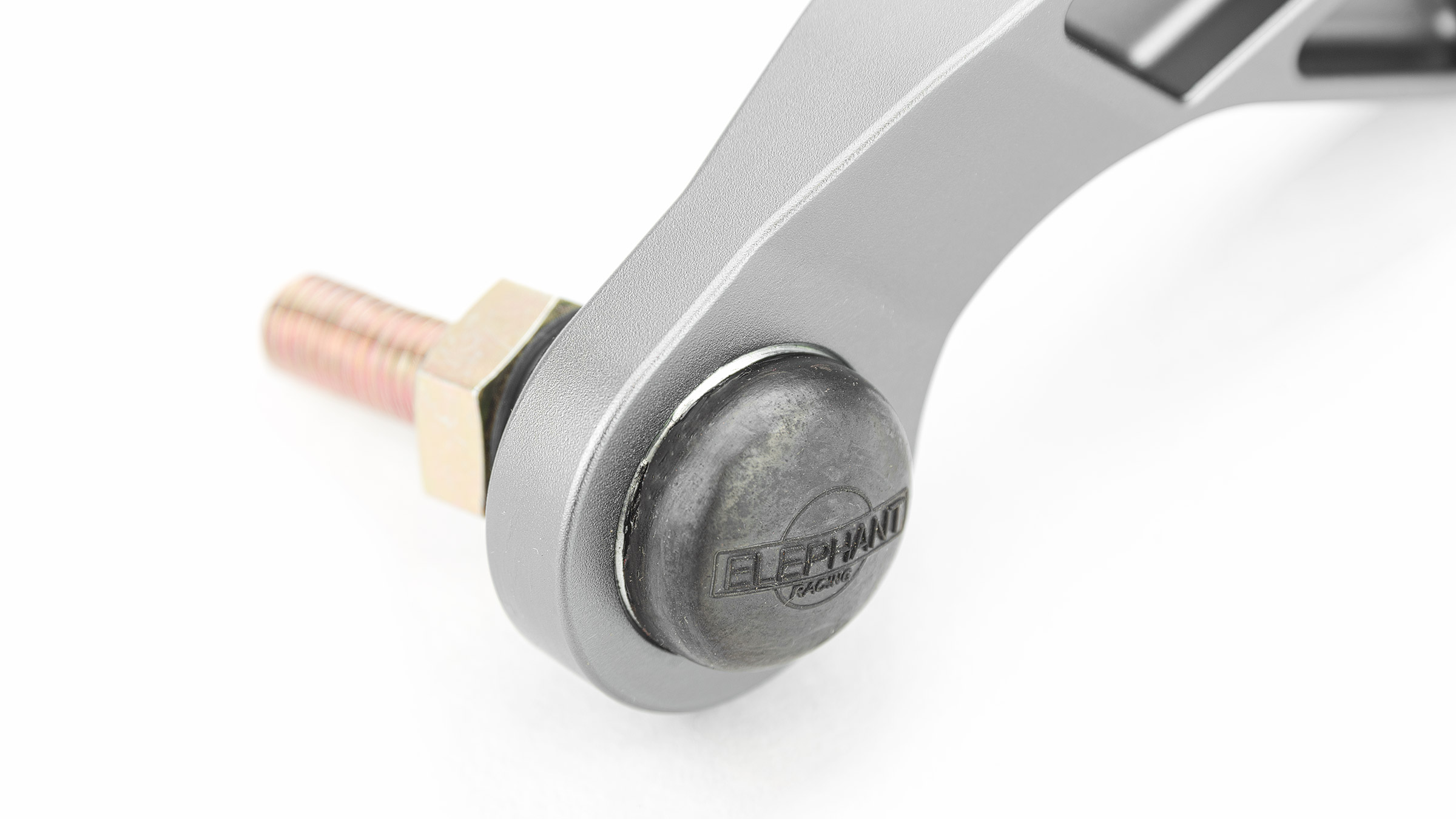

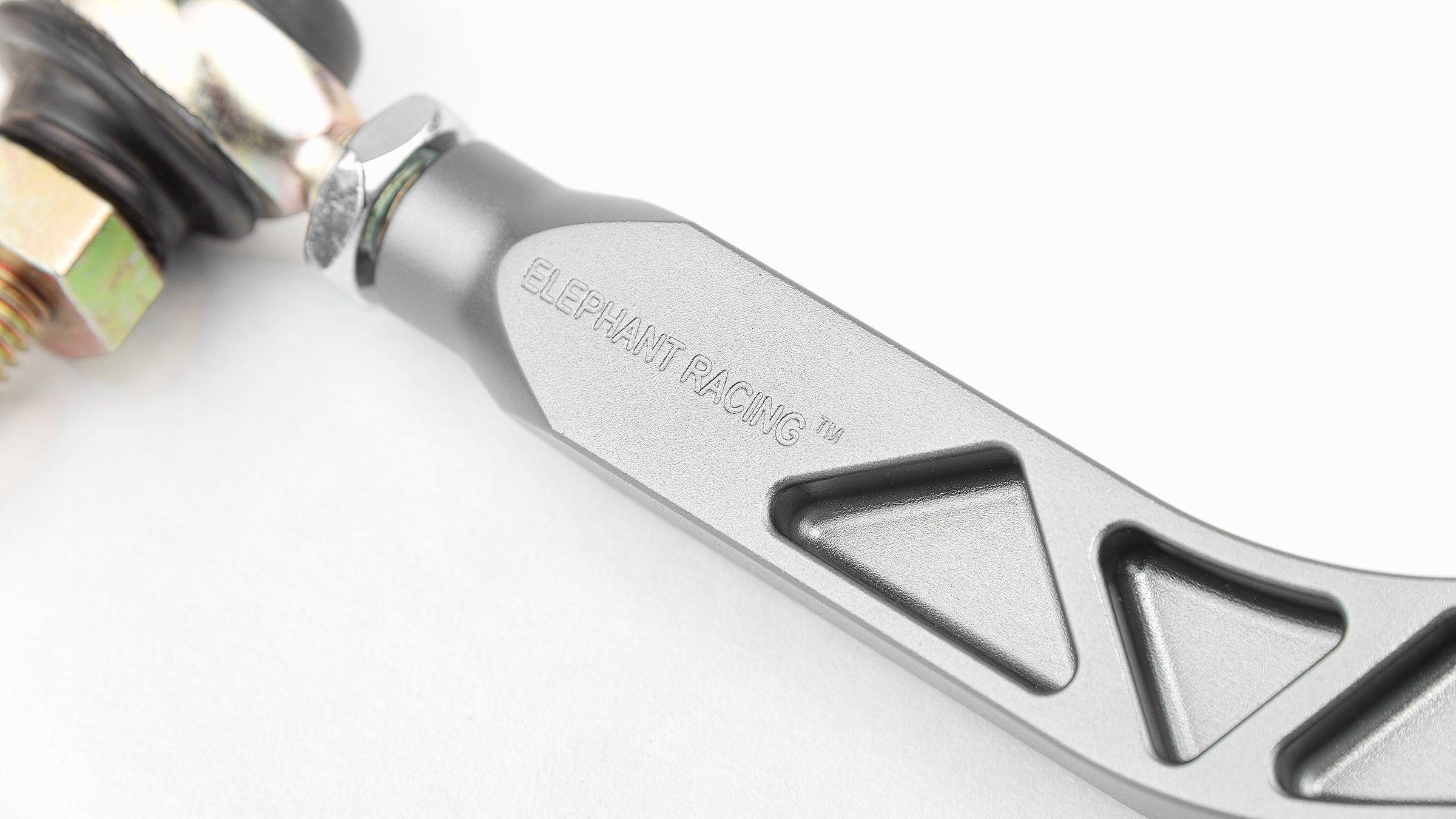

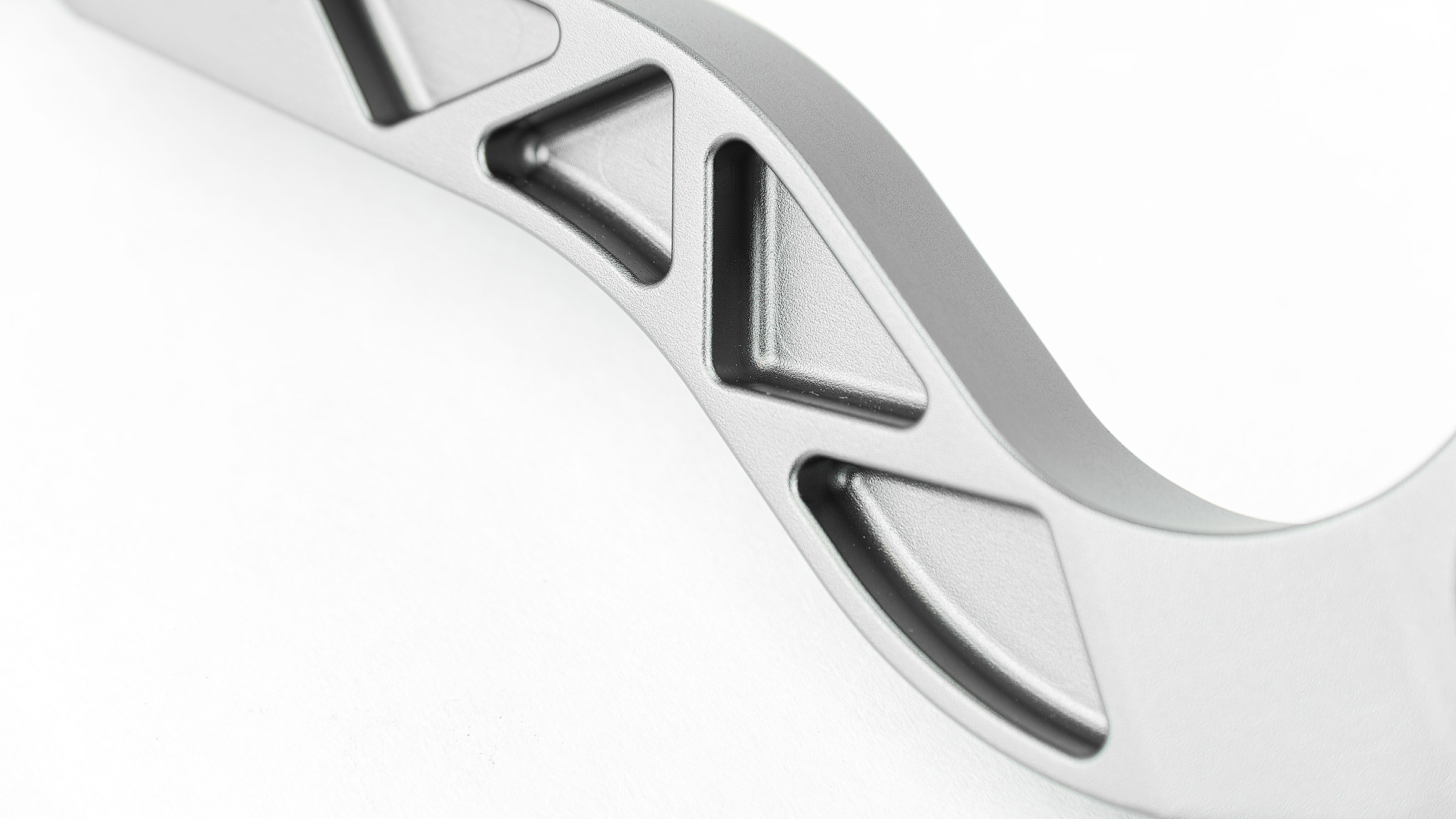

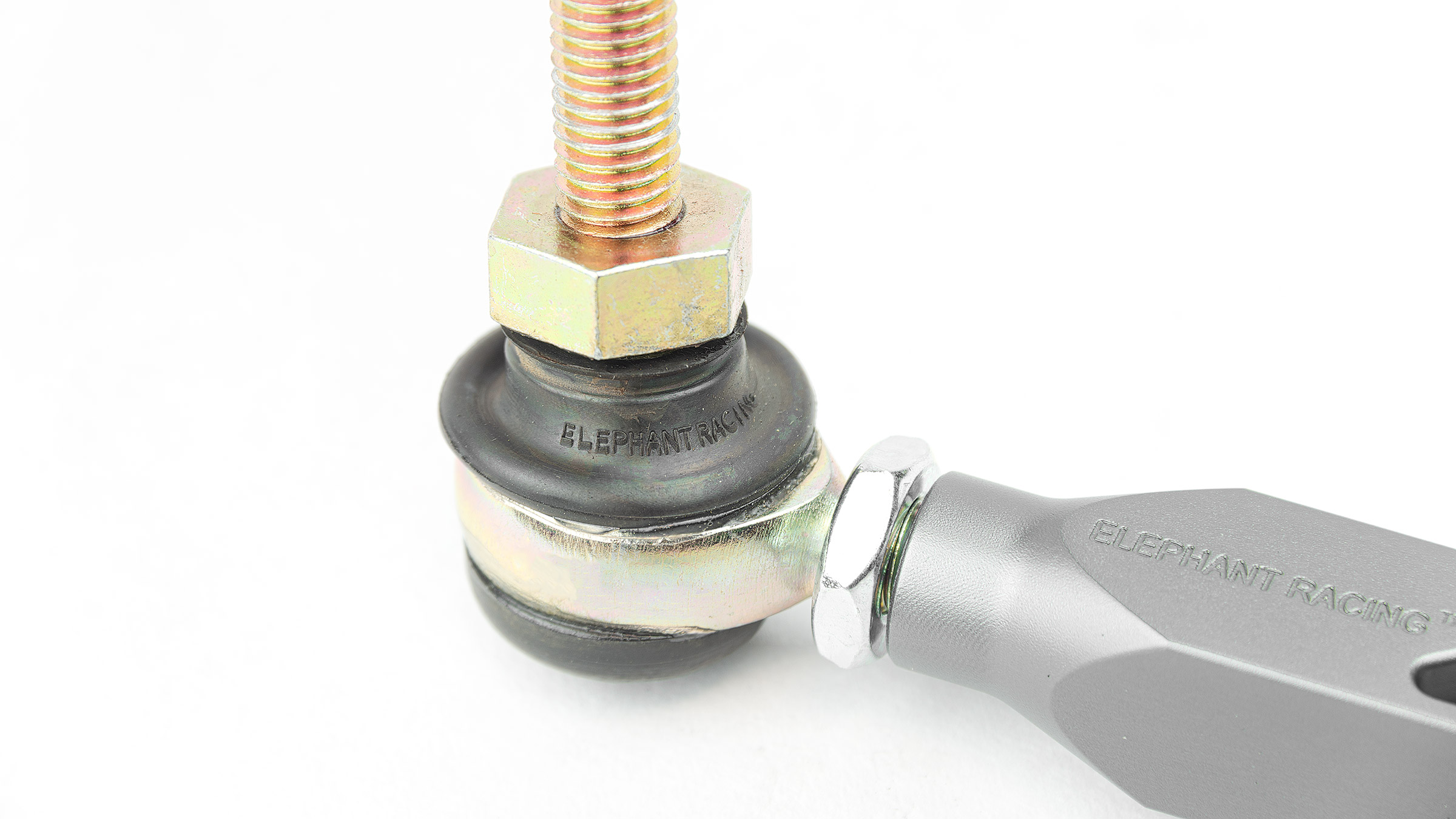

https://www.elephantracing.com/wp-content/uploads/adjustable_control_arms_for_porsche_993_002a-150x84.jpgAdjustable drop link details for Porsche 993 with RS swaybarhttps://www.elephantracing.com/wp-content/uploads/adjustable_control_arms_for_porsche_993_004a-150x84.jpgAdjustable drop link weatherseal details for Porsche 993 with RS swaybarhttps://www.elephantracing.com/wp-content/uploads/adjustable_control_arms_for_porsche_993_003a-150x84.jpgAdjustable drop link weatherseal details for Porsche 993 with RS swaybarhttps://www.elephantracing.com/wp-content/uploads/adjustable_control_arms_for_porsche_993_005a-150x84.jpgAdjustable drop link details for Porsche 993 with RS swaybar

Application Table

Part No. Stock Equiv. Fitment & Configuration
2271009-'95-'98 993 C4/C2 RS Type
1 pair req'd per Car

Links for Rear for RS Adjustable Drop Links

DIY Rear Adjustable RS Drop Link Installation

Front & Rear Stock Drop Links

Drop links are exposed to heavy cornering loads and stress due to steering action. As the joints wear, you may experience excess noise, loss of roll stiffness and failure. Replace them with these Stock drop links to restore original performance and ride quality.

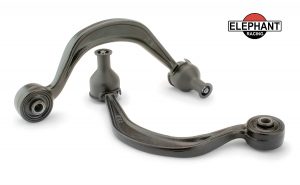

Front

Front OEM replacement drop links for Porsche

Front Right

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99334307201

Porsche part number "993 343 072 01"

Stock front right drop links, Porsche part #993-343-072-01

993 343 072 01		'95-'98 993, Front C2 non-M030 Right
1 req'd per Car
1-99334307000

Porsche part number "993 343 070 00"

Stock front right drop links, Porsche part #993-343-070-00

993 343 070 00		'95-'98 993, Front C2/C4 M030 Right
1 req'd per Car

Front Left

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99334307101

Porsche part number "993 343 071 01"

Stock front left drop links, Porsche part #993-343-071-01

993 343 071 01		'95-'98 993, Front C2 non-M030 Left
1 req'd per Car
1-99334306900

Porsche part number "993 343 069 00"

Stock front left drop links, Porsche part #993-343-069-00

993 343 069 00		'95-'98 993, Front C2/C4 M030 Left
1 req'd per Car

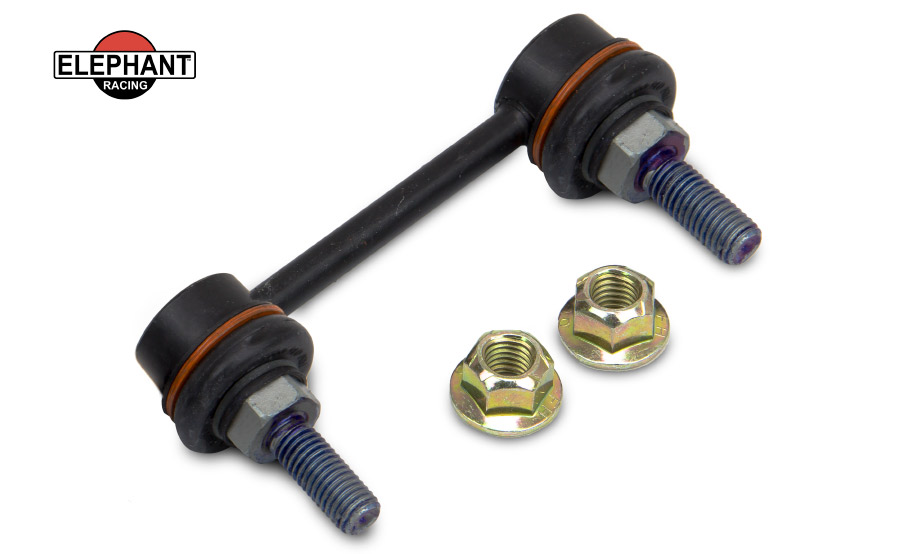

Rear

Rear OEM replacement drop links for Porsche 993

Rear Right & Left

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99333307380

Porsche part number "993 333 073 80"

Rear stock replacement drop links, Porsche part #993-333-073-80

993 333 073 80		'95-'98 993 C4/C2 RS
2 req'd per Car
1-99333307303

Porsche part number "993 333 073 03"

Rear stock replacement drop links, Porsche part #993-333-073-03

993 333 073 03		'95-'98 993 C4/C2 Stock & M030
2 req'd per Car

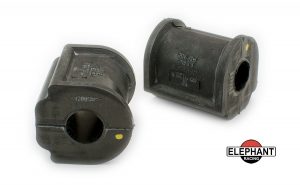

Front & Rear Stock Swaybar Bushings

Replace old, worn out swaybar bushings with a set of stock rubber bushings. Choose from Stock (non M030 suspension upgrade) or euro GT3 street bushings.

Available for front and rear sway bars.

Front

Front rubber swaybar bushings for Porsche

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-96434379222

Porsche part number "964 343 792 22"

Front swaybar bushings, Porsche part #964-343-792-22

964 343 792 22		22mm Stock & M030,
'89-'94 964 C4/C2,
'95-'98 993
2 req'd per Car
1-96434379220

Porsche part number "964 343 792 20"

Front swaybar bushings, Porsche part #964-343-792-20

964 343 792 20		20mm Stock,
'89-'94 964,
'95-'98 993
2 req'd per Car
1-96434379206

Porsche part number "964 343 792 06"

Front swaybar bushings, Porsche part #964-343-792-06

964 343 792 06		'95-'98 993 w/ Euro RS swaybar, 23mm
2 req'd per Car

Rear

Rear rubber swaybar bushings for Porsche

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-477411313N

Porsche part number "477.411.313N"

Rear rubber swaybar bushings, Porsche part #477.411.313N

477.411.313N		'78-'85 911 18mm,
'83-'90 944,
'89-'94 964,
'95-'98 993
2 req'd per Car
1-477411313C

Porsche part number "477.411.313C"

Rear rubber swaybar bushings, Porsche part #477.411.313C

477.411.313C		20mm, '85-'88 911 Turbo,
'91-'93 964 C2 Manual Trans,
'91-'94 964 C4 Rear,
'95-'98 993 M030/RS
2 req'd per Car

Links for Stock Swaybar Bushings

Rubber vs. Plastic Compound Bushings

 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"←" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Front

Front Swaybars for Porsches
Front Swaybars
$505.00 each
Front Adjustable Drop Links for Porsches
Front Adjustable Drop Links
#2271011
'95-'98 993 C2 & C4
1 pair, req'd per car
$445.00 pair
Stock Front Right Drop Links for Porsches
Stock Front Right Drop Links
$195.00 each
Stock Front Left Drop Links for Porsches
Stock Front Left Drop Links
$195.00 each
Front Swaybar Bushings for Porsches
Front Swaybar Bushings
$44.00 each

Rear

Rear Swaybars for Porsches
Rear Swaybars
$425.00 each
Rear Adjustable Drop Links for M030 & Standard for Porsches
Rear Adjustable Drop Links for M030 & Standard
#2271006
'95-'98 993 C4/C2 Stock & M30 Type
1 pair, req'd per car
$295.00 pair
Rear Adjustable Drop Links for RS Type for Porsches
Rear Adjustable Drop Links for RS Type
#2271009
'95-'98 993 C4/C2 RS Type
1 pair, req'd per car
$395.00 pair
Rear Stock Replacement Drop Links for Porsches
Rear Stock Replacement Drop Links
$295.00 each
Rear Rubber Swaybar Bushings for Porsches
Rear Rubber Swaybar Bushings
$19.00 each
