Tie Rods

Bump Geometry Correction

Lowered cars with non-RS wheel carriers suffer from bump steer and will benefit from bump geometry correction.

Bump steer is a change in toe due to vertical movement of the wheel, such as when driving over a bump. The toe change causes the car to turn, and the driver needs to constantly correct for this to maintain a steady trajectory. This makes the car a handful to drive, especially over bumpy road surfaces.

Bump correction is achieved by moving the tie rod end pivot about 10mm closer to the steering knuckle as compared to the stock tie rod end. This changes the angle of the tie rod to produce the bump geometry correction.

No Need To Convert Wheel Carriers

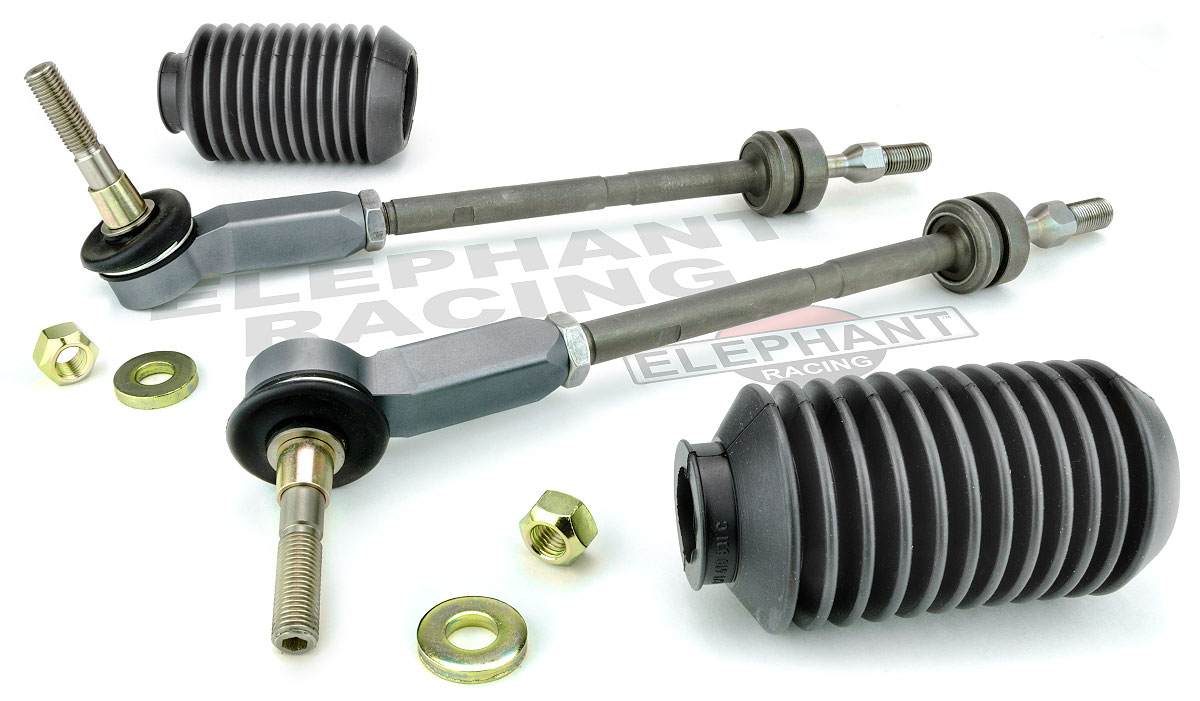

This Bump Steer Correcting Tie Rod kit provides bump geometry correction with the standard C2/C4 wheel carriers. It is not necessary to convert the wheel carriers to RS type to correct for bump steer when using our kit.

• Corrects for bump steer
• Eliminates rubber inner-joint
• Enhanced driving precision
• Easier and more cost effective than RS wheel carrier conversion

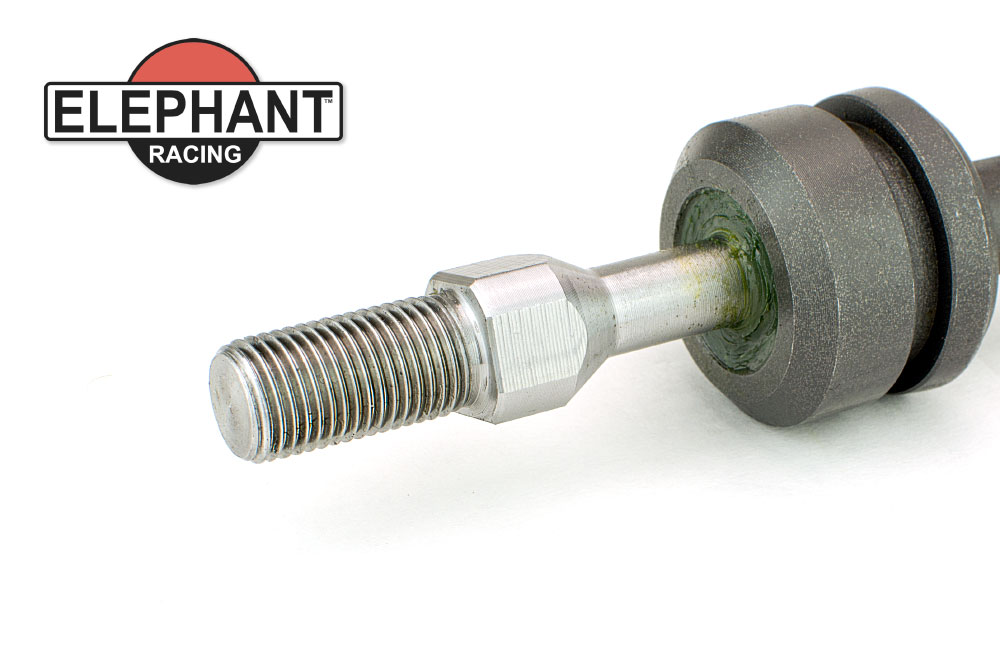

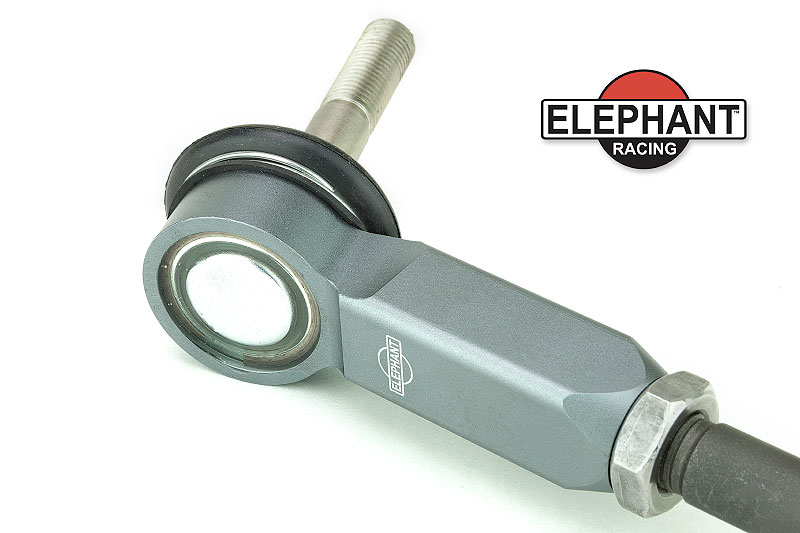

These Elephant Racing bump steer tie rods also eliminate the compliant rubber inner-joint found in the factory 964 tie rods with a spherical bearing providing a more direct and responsive steering feel. Thus, proper suspension geometry is restored, driver corrections are minimized, and vehicle trajectory is stabilized making driving control easier while reducing driver fatigue.

• “Just wanted to let you know i received my parts today. I wanted to reach out and thank you. Second, to let you know i have never seen a tie rod of this quality before. I am beyond pleased and look forward to installing them on my car, along with the links.”Patrick I. – Londonderry, NH

Watch this Quick Overview

RS tie rods use harder compound rubber and improve both steering precision and feedback. RS wheel carriers are required to use these tie rods. Additionally, pairing these tie rods with RS style wheel carrier reduce effects of bump steer and is a must for cars that are lowered more than 30mm.

993 RS stock height is 50mm lower than US spec cars and 20-30mm lower than European spec cars.

Kits come with outer and inner tie rods, two kits required per car.

The outer tie rids can also be used with standard or M030 tie rod ends. Hover These are only sold as a kit of inner and outer tie rods.

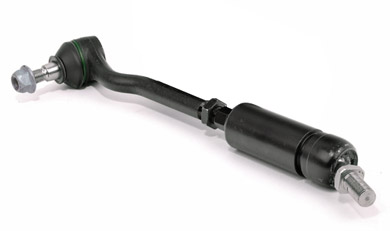

These are replacement tie rods that were used in both standard and sport (M030) suspension setups. Replacing tired tie rods will restore original steering precision. If lowering the car we recommend replacing these with RS type tie rods and wheel carrier for bump steer correction.

Kit comes with outer and inner tie rods. Sold individually, order two per car.
