Sway Bars and Drop Links
For Porsche 996, 997
- Control 996/997 body roll, adjust for over/under steer, manage tire contact patch, and eliminate binding by upgrading swaybars and drop links.
GT3 Adjustable Swaybars
For Porsche 996, 997, 986 and 987 Boxster, Cayman
Adjustable Swaybar with Bushings
For Porsche 997
Adjustable Drop Links
For Porsche 996, 997, 986 and 987 Boxster, Cayman
Stock Drop Links
For Porsche 996, 997, 986 and 987 Boxster, Cayman
Swaybar Rubber Bushings
For Porsche 996, 997, 986 and 987 Boxster, Cayman, and 991
GT3 Adjustable Swaybars
Adjustable front swaybars allow you to easily fine-tune understeer/oversteer and roll stiffness. A great upgrade for cars used on both street and track.
A GT3 3-way adjustable front swaybar allows you to easily fine-tune understeer/oversteer and roll stiffness. A great upgrade for cars used on both street and track.
Front
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99634370121 | Porsche part number "996 343 701 21"Gt3 adjustable front swaybars, Porsche part #996-343-701-21996 343 701 21 | '97-'04 996/986, M030 23.6mm 1 req'd per Car |
1-99634370190 | Porsche part number "996 343 701 90"Gt3 adjustable front swaybars, Porsche part #996-343-701-90996 343 701 90 | 27mm GT3 Euro Street 5-way adj, '99-'04 996/997, '97-'04 Boxster 1 req'd per Car |
1-99734370195 | Porsche part number "997 343 701 95"Gt3 adjustable front swaybars, Porsche part #997-343-701-95997 343 701 95 | 27mm GT3 Euro Street, 5-way, '05-'08 997.1, Boxster/Cayman 1 req'd per Car |
Rear
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99733370196 | Porsche part number "997 333 701 96"Rear swaybars, Porsche part #997-333-701-96997 333 701 96 | 25.6mm GT3 Euro Street 3-way adj, '05-'12 997 1 req'd per Car |
1-99633370190 | Porsche part number "996 333 701 90"Rear swaybars, Porsche part #996-333-701-90996 333 701 90 | 21mm GT3 Street 4-way adj, '99-'05 996 1 req'd per Car |
1-99633370126 | Porsche part number "996 333 701 26"Rear swaybars, Porsche part #996-333-701-26996 333 701 26 | 19.6mm M030 non-adjustable, '99-'05 996 1 req'd per Car |
Front
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-997FSBK-GTS | - | '05-'12 997 (includes bushings) 1 kit req'd per Car |

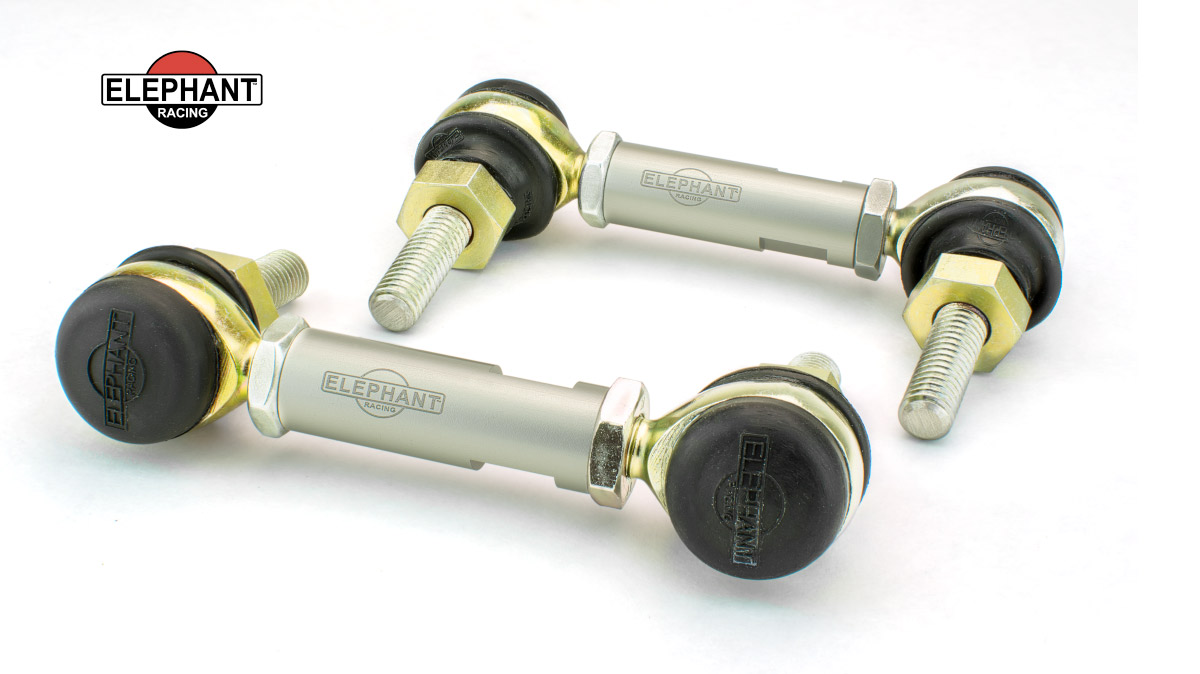

The ideal swaybar is completely unloaded at static ride height but stock drop links almost always preload the swaybar since the car doesn’t sit perfectly level due to asymmetries such as driver weight and other factors.
A preloaded swaybar shifts the weight carried by each of the tires, increasing grip on weighted tires at the expense of decreasing grip on un-weighted tires. This shifted weight/grip causes uneven handling in left and right turns, and premature brake lockup since the less-loaded tire locks up first.
These adjustable drop links can completely eliminate swaybar preload by easily adjusting drop link length and therefore swaybar performance will be optimized.
- Maintenance-free precision rod ends
- Weather-sealed
- Light weight aluminum design
- Easy Bolt-on replacement
Front
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
2271013 | - | '99-'05 996 Front with GT3 swaybar and C2 upright, '05-'12 997 Front with GT3 swaybar and C2 upright, '97-'12 Boxster front with GT3 swaybar 1 pair req'd per Car |
2271005 | - | '99-'12 996 & 997 Front C2 stock/M030 swaybar, '97-'12 Boxster & Cayman front M030 swaybar 1 pair req'd per Axle |
2271015 | - | '99-'12 996 & 997 Front GT3 swaybar / GT3 upright 1 pair req'd per Car |
2271016 | - | '99-'05 996 Front with GT3 swaybar and C4 upright, '05-'12 997 Front with GT3 swaybar and C4 upright 1 pair req'd per Car |
2271014 | - | '99-'12 996 & 997 Front C4 1 pair req'd per Car |
Rear
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
2271012 | - | '99-'05 996 w/GT3 swaybar 1 pair req'd per Car |
2271000 | - | '99-'05 996 C4/C2 w/Stock/M030 swaybar. '05-'12 997 w/Stock swaybar '05-'12 997 w/GT3 swaybar 1 pair req'd per Car |

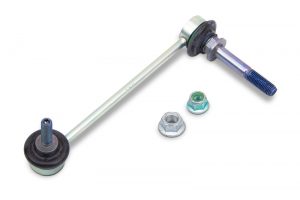

Front
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99634307305 | Porsche part number "996 343 073 05"Stock drop links, Porsche part #996-343-073-05996 343 073 05 | '99-'05 996 C4 & turbo front left & right 2 req'd per Car |
1-99634307004 | Porsche part number "996 343 070 04"Stock drop links, Porsche part #996-343-070-04996 343 070 04 | '99-'05 996 C2 front right, '97-'04 Boxster front right & rear left 2 req'd per Car |
1-99634306904 | Porsche part number "996 343 069 04"Stock drop links, Porsche part #996-343-069-04996 343 069 04 | '99-'05 996 C2 front left, '97-'04 Boxster front left & rear right 2 req'd per Car |
1-99734307004 | Porsche part number "997 343 070 04"Stock drop links, Porsche part #997-343-070-04997 343 070 04 | '05-'12 997 C2/GT3 front right, '05-'12 Boxster/Cayman front right & rear left 2 req'd per Car |
1-99734306904 | Porsche part number "997 343 069 04"Stock drop links, Porsche part #997-343-069-04997 343 069 04 | '05-'12 997 C2/GT3 front left, '05-'12 Boxster/Cayman front left & rear right 2 req'd per Car |
1-99734307403 | Porsche part number "997 343 074 03"Stock drop links, Porsche part #997-343-074-03997 343 074 03 | '05-'12 997 C4 front right 1 req'd per Car |
1-99734307303 | Porsche part number "997 343 073 03"Stock drop links, Porsche part #997-343-073-03997 343 073 03 | '05-'12 997 C4 front left 1 req'd per Car |

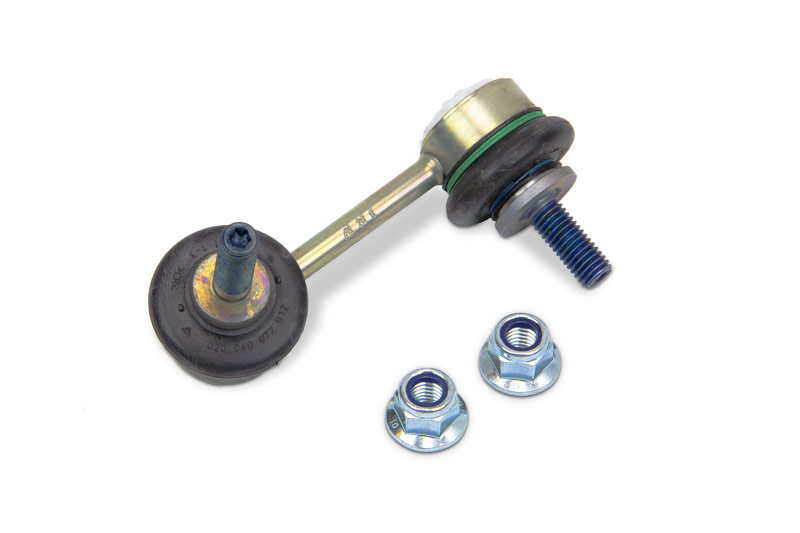

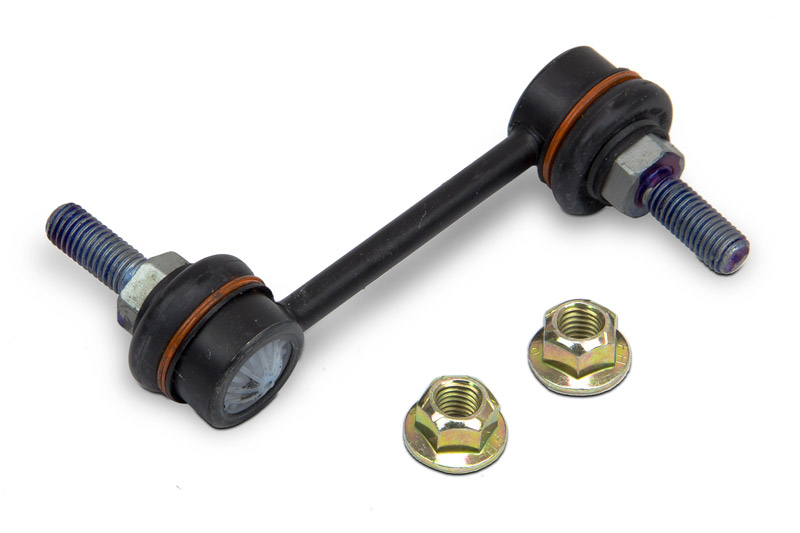

Rear
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99733307006 | Porsche part number "997 333 070 06"Stock drop links, Porsche part #997-333-070-06997 333 070 06 | '05-'12 997 C2,C4,GT3, right side 1 req'd per Car |
1-99733306906 | Porsche part number "997 333 069 06"Stock drop links, Porsche part #997-333-069-06997 333 069 06 | '05-'12 997 C2,C4,GT3, left side 1 req'd per Car |
1-99633306904 | Porsche part number "996 333 069 04"Stock drop links, Porsche part #996-333-069-04996 333 069 04 | '99-'05 996 C2/C4, left or right 2 req'd per Car |
Front
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99734379200 | Porsche part number "997 343 792 00"Front swaybar rubber bushings, Porsche part #997-343-792-00997 343 792 00 | 25.5mm, '09-'12 987.2 Front Euro GT3, '10-'17 997 GT3 2 req'd per Car |
1-99634379212 | - | '99-'04 996T, 996 M030, '05-'12 997T, 986 S, 986 M030 2 req'd per Car |
1-99634379217 | Porsche part number "996 343 792 17"Front swaybar rubber bushings, Porsche part #996-343-792-17996 343 792 17 | '02+ 996/997/987 M030 2 req'd per Car |
1-99634379214 | Porsche part number "996 343 792 14"Front swaybar rubber bushings, Porsche part #996-343-792-14996 343 792 14 | '97-'04 996 C2/C4 w/MT, '97-'04 Boxster w/o M030 2 pair req'd per Car |
1-99634379216 | Porsche part number "996 343 792 16"Front swaybar rubber bushings, Porsche part #996-343-792-16996 343 792 16 | 27mm, '99-'12 996/997 Euro GT3 Street 2 req'd per Car |
Rear
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99633379224 | Porsche part number "996 333 792 24"Rear swaybar rubber bushings, Porsche part #996-333-792-24996 333 792 24 | 18.7mm non-M030, '99-'12 996/997, '97-'12 986/987 2 req'd per Car |
1-99633379228 | Porsche part number "996 333 792 28"Rear swaybar rubber bushings, Porsche part #996-333-792-28996 333 792 28 | 19.2mm, '99-'04 996/997 S, '97-'12 986/987 M030 2 req'd per Car |
1-99633379225 | Porsche part number "996 333 792 25"Rear swaybar rubber bushings, Porsche part #996-333-792-25996 333 792 25 | 19.8mm w/ M030, '99-'12 996/997, '97-'12 986/987, CS, BS 2 req'd per Car |
1-99633379226 | Porsche part number "996 333 792 26"Rear swaybar rubber bushings, Porsche part #996-333-792-26996 333 792 26 | 21mm, '99-'12 996/997, Euro GT3 2 req'd per Car |
1-99733379295 | Porsche part number "997 333 792 95"Rear swaybar rubber bushings, Porsche part #997-333-792-95997 333 792 95 | 25.6mm, '99-'12 997 GT3 & 997 US Model 2 req'd per Car |
