Sway Bars and Drop Links
For Porsche 986 and 987 Boxster/Cayman
- Control 996/997 body roll, adjust for over/under steer, manage tire contact patch, and eliminate binding by upgrading swaybars and drop links.

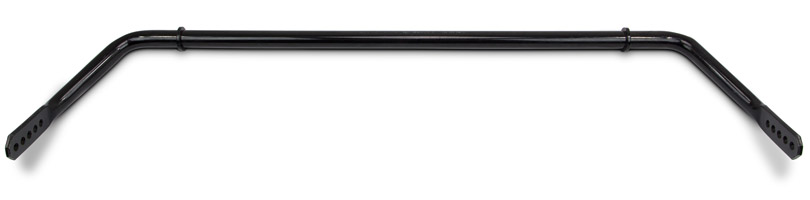

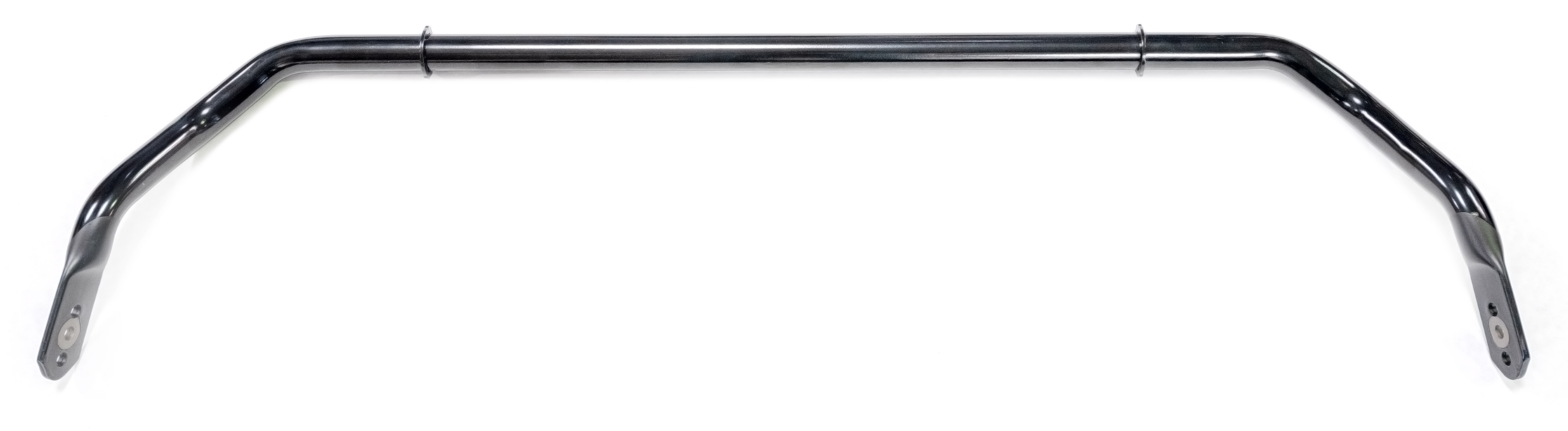

GT3 Adjustable Swaybars
Adjustable front swaybars allow you to easily fine-tune understeer/oversteer and roll stiffness. A great upgrade for cars used on both street and track.
A GT3 3-way adjustable front swaybar allows you to easily fine-tune understeer/oversteer and roll stiffness. A great upgrade for cars used on both street and track.
Front
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99634370121 | Porsche part number "996 343 701 21"Gt3 adjustable front swaybars, Porsche part #996-343-701-21996 343 701 21 | '97-'04 996/986, M030 23.6mm 1 req'd per Car |
1-99734370194 | Porsche part number "997 343 701 94"Gt3 adjustable front swaybars, Porsche part #997-343-701-94997 343 701 94 | 25.5mm GT3 Euro Street 5-way adj, '09-'12 Boxster/Cayman 1 req'd per Car |
1-99634370190 | Porsche part number "996 343 701 90"Gt3 adjustable front swaybars, Porsche part #996-343-701-90996 343 701 90 | 27mm GT3 Euro Street 5-way adj, '99-'04 996/997, '97-'04 Boxster 1 req'd per Car |
1-99734370195 | Porsche part number "997 343 701 95"Gt3 adjustable front swaybars, Porsche part #997-343-701-95997 343 701 95 | 27mm GT3 Euro Street, 5-way, '05-'08 997.1, Boxster/Cayman 1 req'd per Car |
Rear
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-98633370120 | Porsche part number "986 333 701 11"Rear swaybars, Porsche part #986-333-701-11986 333 701 11 | 19.8mm M030, '97-'12 Boxster/Cayman 1 req'd per Car |
1-986RSBK | Porsche part number "986RSBK"Rear swaybars, Porsche part #986RSBK986RSBK | 19.1mm, '97-'12 986/987, 3-way adjustable 1 req'd per Car |
1-98733370107 | Porsche part number "987 333 701 07"Rear swaybars, Porsche part #987-333-701-07987 333 701 07 | 19.8mm Club Sport, '05-'12 Boxster/Cayman 1 req'd per Car |
1-98133370580 | Porsche part number "981 333 705 80"Rear swaybars, Porsche part #981-333-705-80981 333 705 80 | 21mm GT4 3-way adj., '12+ Boxster/Cayman 1 req'd per Car |
The ideal swaybar is completely unloaded at static ride height but stock drop links almost always preload the swaybar since the car doesn’t sit perfectly level due to asymmetries such as driver weight and other factors.
A preloaded swaybar shifts the weight carried by each of the tires, increasing grip on weighted tires at the expense of decreasing grip on un-weighted tires. This shifted weight/grip causes uneven handling in left and right turns, and premature brake lockup since the less-loaded tire locks up first.

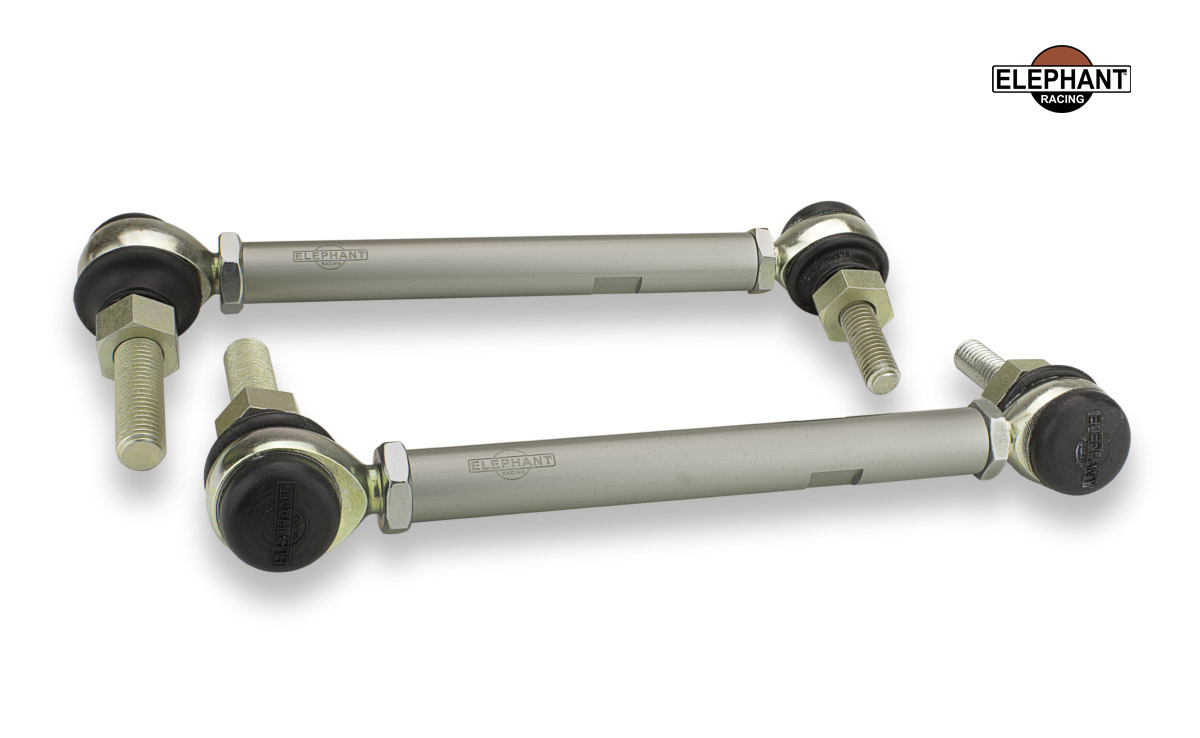

These adjustable drop links can completely eliminate swaybar preload by easily adjusting drop link length and therefore swaybar performance will be optimized.
- Maintenance-free precision rod ends
- Weather-sealed
- Light weight aluminum design
- Easy Bolt-on replacement
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
2271013 | - | '99-'05 996 Front with GT3 swaybar and C2 upright, '05-'12 997 Front with GT3 swaybar and C2 upright, '97-'12 Boxster front with GT3 swaybar 1 pair req'd per Car |
2271005 | - | '99-'12 996 & 997 Front C2 stock/M030 swaybar, '97-'12 Boxster & Cayman front M030 swaybar 1 pair req'd per Axle |

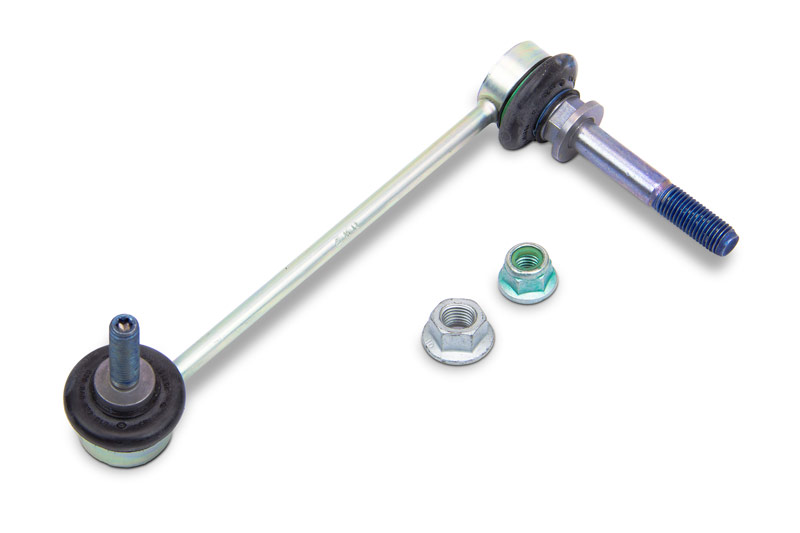

Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99634307004 | Porsche part number "996 343 070 04"Stock drop links, Porsche part #996-343-070-04996 343 070 04 | '99-'05 996 C2 front right, '97-'04 Boxster front right & rear left 2 req'd per Car |
1-99634306904 | Porsche part number "996 343 069 04"Stock drop links, Porsche part #996-343-069-04996 343 069 04 | '99-'05 996 C2 front left, '97-'04 Boxster front left & rear right 2 req'd per Car |
1-99734307004 | Porsche part number "997 343 070 04"Stock drop links, Porsche part #997-343-070-04997 343 070 04 | '05-'12 997 C2/GT3 front right, '05-'12 Boxster/Cayman front right & rear left 2 req'd per Car |
1-99734306904 | Porsche part number "997 343 069 04"Stock drop links, Porsche part #997-343-069-04997 343 069 04 | '05-'12 997 C2/GT3 front left, '05-'12 Boxster/Cayman front left & rear right 2 req'd per Car |

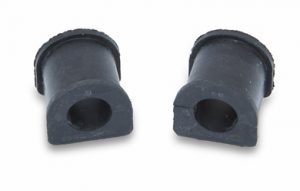

Front
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99734379200 | Porsche part number "997 343 792 00"Front swaybar rubber bushings, Porsche part #997-343-792-00997 343 792 00 | 25.5mm, '09-'12 987.2 Front Euro GT3, '10-'17 997 GT3 2 req'd per Car |
1-99634379212 | - | '99-'04 996T, 996 M030, '05-'12 997T, 986 S, 986 M030 2 req'd per Car |
1-99634379214 | Porsche part number "996 343 792 14"Front swaybar rubber bushings, Porsche part #996-343-792-14996 343 792 14 | '97-'04 996 C2/C4 w/MT, '97-'04 Boxster w/o M030 2 pair req'd per Car |
Rear
Application Table
Part No. | Stock Equiv. | Fitment & Configuration |
---|---|---|
1-99633379224 | Porsche part number "996 333 792 24"Rear swaybar rubber bushings, Porsche part #996-333-792-24996 333 792 24 | 18.7mm non-M030, '99-'12 996/997, '97-'12 986/987 2 req'd per Car |
1-99633379228 | Porsche part number "996 333 792 28"Rear swaybar rubber bushings, Porsche part #996-333-792-28996 333 792 28 | 19.2mm, '99-'04 996/997 S, '97-'12 986/987 M030 2 req'd per Car |
1-99633379225 | Porsche part number "996 333 792 25"Rear swaybar rubber bushings, Porsche part #996-333-792-25996 333 792 25 | 19.8mm w/ M030, '99-'12 996/997, '97-'12 986/987, CS, BS 2 req'd per Car |
1-99733379290 | Porsche part number "997 333 792 90"Rear swaybar rubber bushings, Porsche part #997-333-792-90997 333 792 90 | 21mm, '12+ 981 w/ GT4 sway bar 2 req'd per Car |
